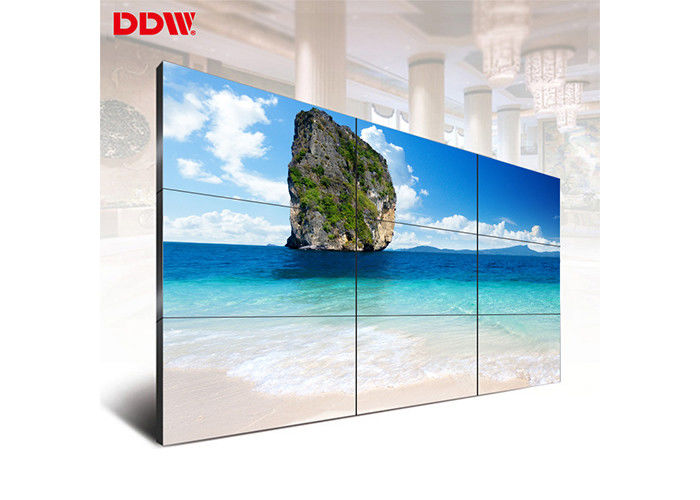

9 Screen Video Wall Equipment / HD Security Multiple Tv Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN12
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: Video Wall Equipment Screen No.: 9 Screen
Display Colors: 8Bit,16.7M Power Supply: AC100~240V 50/60 HZ
Panel Width: 1021.98mm Total Physical Bezel: 3.5mm
Surface: Anti-glare Refresh Rate: 60Hz
High Light:

ultra narrow bezel video wall

,

multi screen video wall


Product Description

9 Screen Video Wall Equipment / HD Security Multiple Tv Video Wall



Video Wall Equipment Application area



Shopping mall, Airport, Plice office, Railway station.

All the places where require high display advertisement or surveillance monitoring.



Video Wall Equipment Key features:



1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Splicing image processing RS-232 RJ45 loop-circuit input/output.

6. Input by remote control with wire, mobile receiver head.



Video Wall Equipment main parameters

  •  Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
  •  700 nits brightness,MEGA DCR contrast
  •  FHD physical resolution 1920x1080
  •  Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
  •  2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  FHD video wall unit--- High brightness,high contrast,high gamut .

Video Wall Equipment Specifications



Model No:

DDW-LW460HN12 Video Wall Equipment

LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 46"
Pixel Pitch(WxH)

0.5302x0.5302mm

Active Display Area(WxH)

1018.08×572.67mm

Panel Dimension(WxHxD)

1021.98x576.57x66.9mm

Total Bezel Width 3.5 mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700 cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



LCD Video Wall Display​ Board Specification

Support PC color 24bit
signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
DVI color 24bit
HDMI Line synchronization range 30-80KHZ
DP Field synchronization range 50-75HZ
Interface input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



FAQ



Q: Are you a manufacturer or trading company?

A:We are a manufacturer who has been specializing in producing LCD display for years.



Q: How does your factory do regarding quality control?

A:Quality is priority.DDW people always attach great importance to quality controlling from the



very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.



Q: What is your after-sale service?

A: We offer 100% guarantee on our product .



Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.



Q: When will you make the delivery?

A: We can make the delivery within 3-15 working days according to the size and quantities

of your order.



Q:what brand of screen are you using?

A:we are using Samsung ,LG BOE screen.

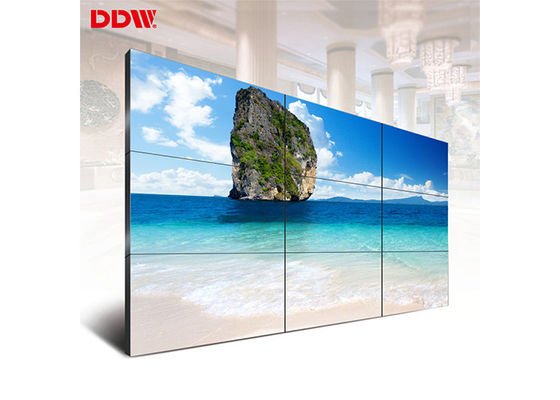

9 Screen Video Wall Equipment / HD Security Multiple Tv Video Wall 0
