Horizontal In Home Video Wall / Seamless Ultra Narrow Bezel Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN13
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: In Home Video Wall Resolution: 1920*1080
Type: Horizontal Total Physical Bezel: 1.7mm
Refresh Rate: 60Hz Dimension: 1020.02x574.61 Mm
Luminance: 700 Nits Panel Height: 574.61mm
High Light:

ultra narrow bezel video wall


video wall lcd screens

Product Description

Horizontal In Home Video Wall / Seamless Ultra Narrow Bezel Video Wall


In Home Video Wall Features:

  • Ultra-narrow border design of the current width
  • Full-screen high definition display, up to 1080P
  • Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
  • using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
  • Long life, stable operation, no burns, injuries, low maintenance costs

Narrow Bezel:

  •  46 inch LCD video wall narrow bezel available: 1.7 mm, 1.8 mm, 3.5 mm;
  •  LCD Video Wall show commercial advertisement, food picture, video play, product picture;

View Angle

  •  178 degree wide viewing angle, the full range of display;
  •  Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

  •  HD video wall unit: high brightness, contrast and gamut.
  •  Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

 Panel dimension and interfaces:

  •  Dimension: 1020.02x574.61 mm;
  •  Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

  •  Bezel size: 1.7 mm;
  •  The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

In Home Video Wall Specifications:


Model No: DDW-LW460HN13 In Home Video Wall
Active Screen Diagonal 46 Inch
Total Bezel Width 1.7 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 700 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing

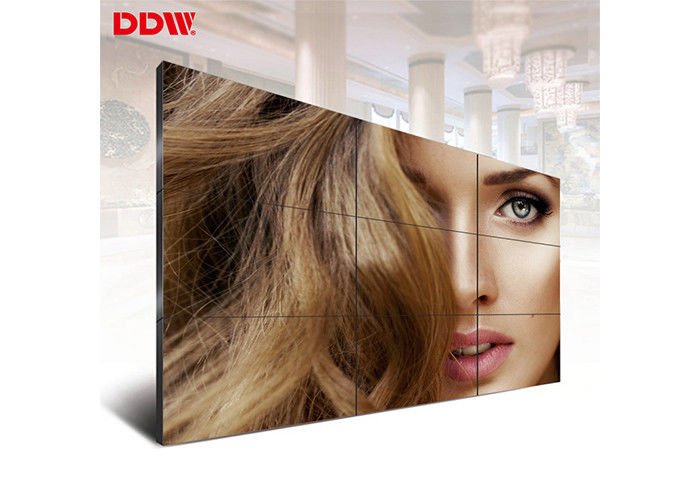

In Home Video Wall Details

Horizontal In Home Video Wall / Seamless Ultra Narrow Bezel Video Wall 0
