SHENZHEN DDW TECHNOLOGY CO.,LTD Company Profile
products
Home > products > LCD Video Wall > Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control
Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control
Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control
Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control

Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW490DUN-THC1

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ultra narrow bezel video wall

,

video wall lcd screens

Type:
Wall Mounted
Product Name:
LCD Video Wall Display
Input Voltage:
AC 220v-250v
MTBF:
> 100,000h
Control:
Matrix Joint Control
Dot:
0.5593x0.5593
Total Physical Bezel:
3.5mm
Dot Pitch:
0.5593x0.5593mm
Type:
Wall Mounted
Product Name:
LCD Video Wall Display
Input Voltage:
AC 220v-250v
MTBF:
> 100,000h
Control:
Matrix Joint Control
Dot:
0.5593x0.5593
Total Physical Bezel:
3.5mm
Dot Pitch:
0.5593x0.5593mm
Product Description

Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control



LCD Video Wall Display Features

  1. Automatic adjustment of backlight and refresh rate for extended life
  2. Exclusive software plus black technology to ensure image reproduction is realistic
  3. Intelligent wireless control is convenient for high-definition image switching
  4. 3D digital noise reduction, HD high definition
  5. Embedded structural design patent

LCD Video Wall Display main parameters



1. Original DDW commercial grade lcd video wall display panel ,16:9 LG TFT-LCD

2. 500 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. FHD video wall unit--- High brightness,high contrast,high gamut .



LCD Video Wall Display Specifications



Model No: DDW-LW490DUN-THC1 LCD Video Wall Display
LCD Technology LG LCD
Active Screen Diagonal 49''
Pixel Pitch(WxH)

0.5593x0.5593 mm
Active Display Area(WxH)

1073.8 × 604 mm
Panel Dimension(WxHxD)
1077.6x607.8x55.6 mm
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



LCD Video Wall Display Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Other OSD Chinese, English and other languages (other languages can be added as required)

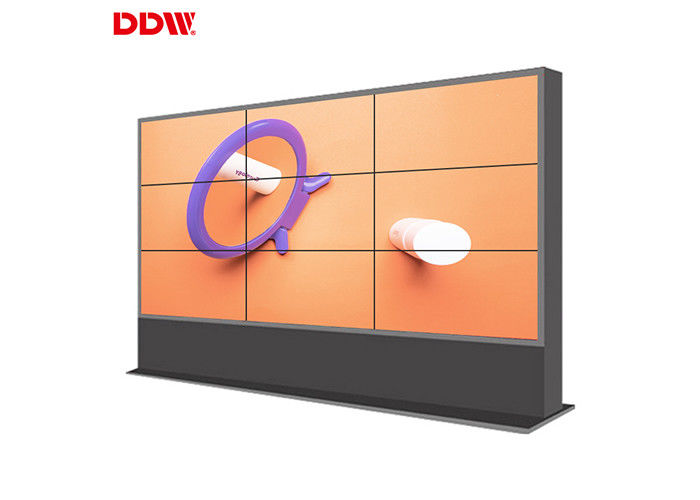

LCD Video Wall Display Picture

Wall Mounted Vga LCD Video Wall Display Support Matrix Joint Control 0
