DDW 4k Narrow Bezel Video Wall 3.5mm / SAMSUNG LCD Video Screen

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN12
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Brand: DDW Bezel Width: 3.5mm
Active Area: 1018.08×572.67mm Brightness: 700 Nits
Product Name: Narrow Bezel Video Wall Backlight: LED
Input Power: DC24V/12V/5V Drive Panel: 5V/12V
High Light:

ultra narrow bezel video wall

,

multi screen video wall


Product Description

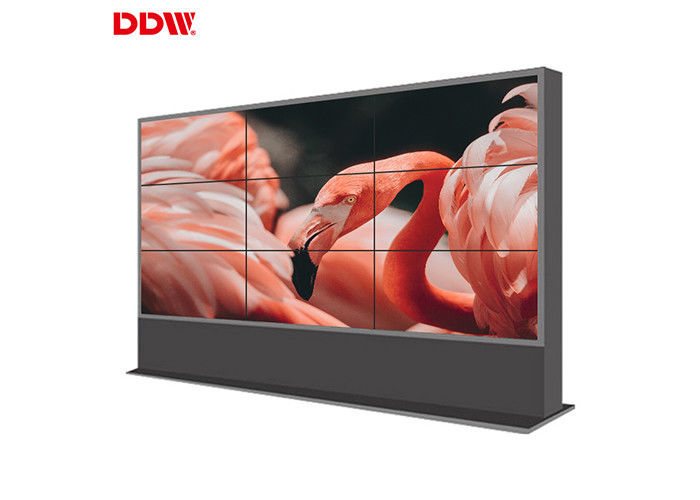

DDW 4k Narrow Bezel Video Wall 3.5mm / SAMSUNG LCD Video Screen



Narrow Bezel Video Wall main parameters



1. FHD physical resolution 1920x1080

2. Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.

3. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

4 HD video wall unit--- High brightness,high contrast,high gamut .



Narrow Bezel Video Wall Application:



office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center,



Narrow Bezel Video Wall Specifications



Model No: DDW-LW460HN12 Narrow Bezel Video Wall
Active Screen Diagonal 46 Inch
Panel Dimension(WxHxD)

1021.98x576.57x66.9mm

Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System LED
Luminance(nits) 700 cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing



FAQ



1. Q: Are you a factory or trading company?
A: We are manufacture for commercial displays system since 2004.

2. Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.


3. Q: What panel brand you use for LCD video wall?

A: Currently, we mainly use original Samsung or LG panels. And we also use BOE or CHIMEI panels in few cheap models.



4. Q: What is the warranty?

A: The panel default warranty is one year. If you need 3 years warranty, the cost will add 15%~20%.


5. Q: What payment method you accept?
A: We accept TT or west union. And you can pay 30% deposit for production, and 70% balance before shipment.



6. Q: What's the delivery time?
A: It depends on the order qty. 3~4 days for sample order, 5~7 days if order qty is ≤50pcs, 7~10pcs if qty is ≤ 100pcs. And over ≥100pcs, the lead time needs to be negociated.
