| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550DUN-THA3 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Name: | LCD Video Wall Display | Application: | CCTV Control Room Conference |
|---|---|---|---|
| Design: | Modular Design | Color: | 8Bit , 16M |
| Aspect Ratio: | 16:9 | Working Humidity: | 0.85 |
| Cooling: | Low Noise Fans | Active Area: | 1209.6×680.4mm |
| High Light: | ultra narrow bezel video wall,multi screen video wall |
||

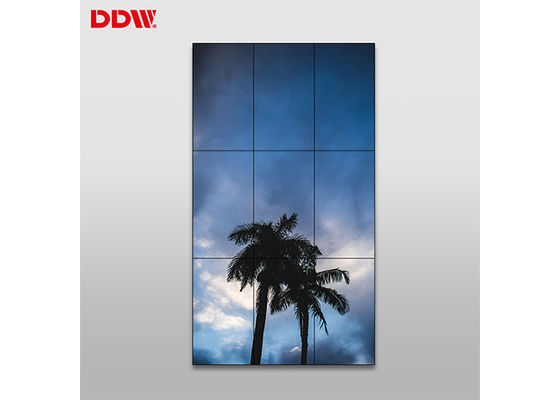

Modular Design LCD Video Wall Display For CCTV Control Room Conference
LCD Video Wall Display basic informations:
LCD Video Wall Display key features:
LCD Video Wall Display Specifications:
| Model No: | DDW-LW550DUN-THA3 LCD Video Wall Display |
| LCD Technology | LG Panel |
| Active Screen Diagonal | 55'' |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6×680.4mm |
| Panel Dimension(WxHxD) |
1211.4x682.2x53.3 mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
LCD Video Wall Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
LCD Video Wall Display Details
