Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LW490DUN-TJB1 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Name: | Commercial Video Wall | Surface: | Anti-glare |
---|---|---|---|
Brightness: | 500 Nits | Active Area: | 1073.8 × 604 Mm |
Panel Brand: | LG Panel | Aspect Ratio: | 16:9 |
Refresh Rate: | 60Hz | Dot: | 0.5302x0.5302 |
High Light: | ultra narrow bezel video wall,multi screen video wall |

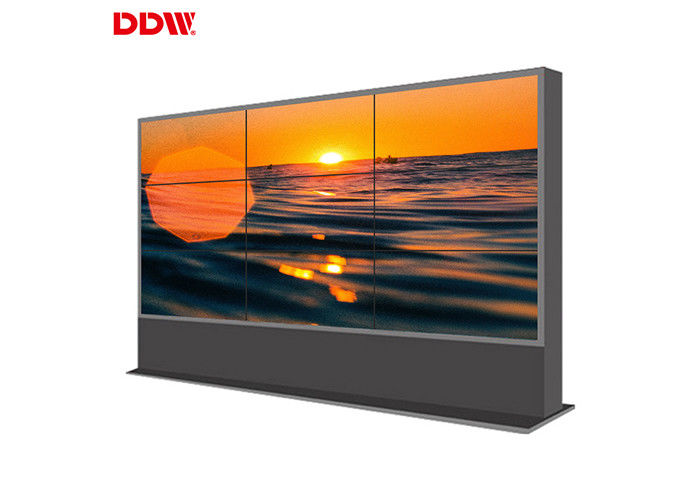

500 Nits Brightness Commercial Video Wall / LCD Seamless Monitor Wall
Commercial Video Wall Key features
Commercial Video Wall Applications
Commercial Video Wall Parameters
Model No: | DDW-LW490DUN-TJB1 Commercial Video Wall |
Active Screen Diagonal | 49" |
TotalBezel Width | 1.8 mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | LED |
Luminance(nits) | 500 cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Panel Dimension(WxHxD) |
1075.38x605.8x53.6mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
Commercial Video Wall Board Specifications
Support | PC | Color | 24bit |
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
Commercial Video Wall Details
