| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 46'' | Bezel Width: | 1.7 Mm |
|---|---|---|---|
| Brightness: | 700 Nits | Product Name: | 46 LCD Video Wall Display |
| Panel Width: | 1020.02 Mm | Aspect Ratio: | 16:9 |
| High Light: | ultra narrow bezel video wall,multi screen video wall |
||

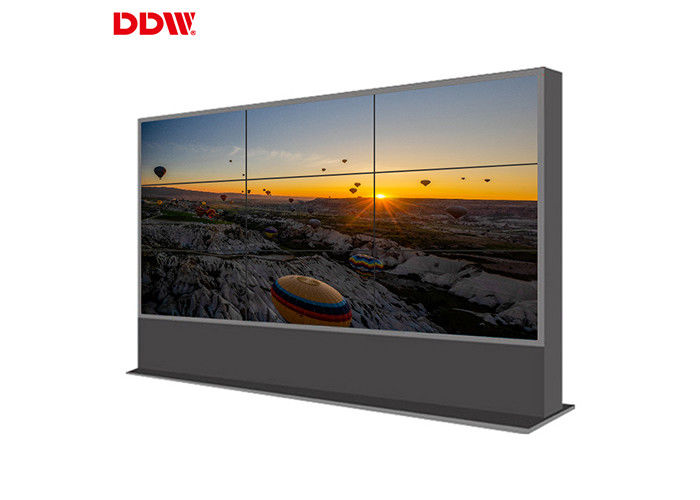

Narrow Bezel 46 LCD Video Wall Display For Real Estate Sale Center
46 LCD Video Wall Display Introduction
1. Original DDW commercial grade lcd video wall display panel ,16:9 BOE TFT-LCD
2. 700nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut.
3. FHD physical resolution 1920x1080
4. Only 1.7 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
46 LCD Video Wall DisplayKey features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
LCD Video Wall Display Specifications
| Model No: | DDW-LW460HN13 46 LCD Video Wall Display | |||||||||
| Active Screen Diagonal | 46 Inch | |||||||||
| Total Bezel Width | 1.7 mm | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Physical Resolution | 1920x1080 | |||||||||
| Backight System | LED | |||||||||
| Luminance(nits) | 700 cd/㎡ | |||||||||
| Contrast | 5000:1 | |||||||||
| Viewing Angle | H 178°|V 178° | |||||||||
| White Point | 10,000 K | |||||||||
| Display Colors | 1.07GB colors | |||||||||
| Refresh Rate | 60Hz | |||||||||
| Response Time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| MTBF | > 100,000 h | |||||||||
| Surface | Anti-glare | |||||||||
| Standby Power Consumption | <3W | |||||||||
| Maximum Power Consumption | ≦160W | |||||||||
| Power Supply | AC100~240V 50/60 HZ | |||||||||
| Cooling | Low noise fans | |||||||||
| Heat Dissipation | 819 BTU/h (max) | |||||||||
| Working Time Capacity | 7x24x365hours | |||||||||
| Application Area | Indoor/Semi Outdoor | |||||||||
| Working Temperature | 0℃～50℃ | |||||||||
| Working Humidity | 0.85 | |||||||||
| Storage Temperature | -20-60°C | -4-140°F | |||||||||
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
46 LCD Video Wall Display Details
