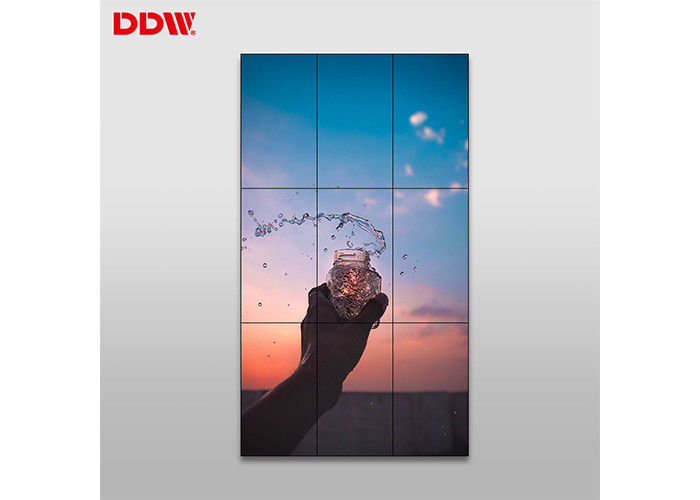

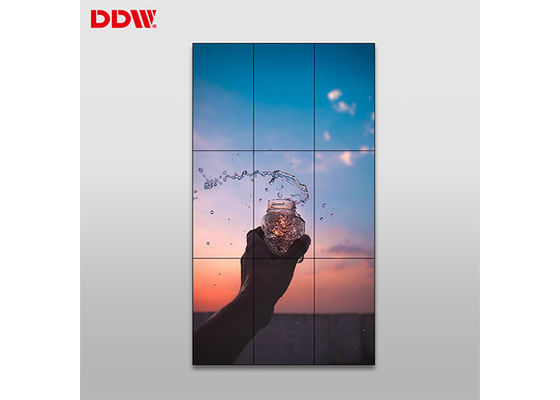

High Brightness LCD Video Wall Display For Financial Center / Security Room
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | LCD Video Wall Display | Backlight: | LED |
|---|---|---|---|
| Application: | Financial Center / Security Room | Active Area: | 1018.08×572.67mm |
| Bezel Size: | 5.3mm | Panel Size: | 46 Inch |
| Dot Pitch: | 0.5302x0.5302 Mm | Responsive Time: | 6ms |
| Highlight: | ultra narrow bezel video wall,multi screen video wall |
||
Product Description
High Brightness LCD Video Wall Display For Financial Center / Security Room
LCD Video Wall Display features:
- Panel size: 46″
- Ultra narrow frame design, the narrowest bezel is 5.3 mm and the bezel can be optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
LCD Video Wall Display Applications
Financial center, real estate center, security room, cinema, theater, etc;
LCD Video Wall Display basic informations:
- With original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Dot Pitch: 0.5302x0.5302 mm; Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
LCD Video Wall Display View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;
LCD Video Wall Display Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Total bezel width
- Bezel size: 5.3 mm;
- The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;
LCD Video Wall Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
