SHENZHEN DDW TECHNOLOGY CO.,LTD Company Profile
products
Home > products > LCD Video Wall > Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen

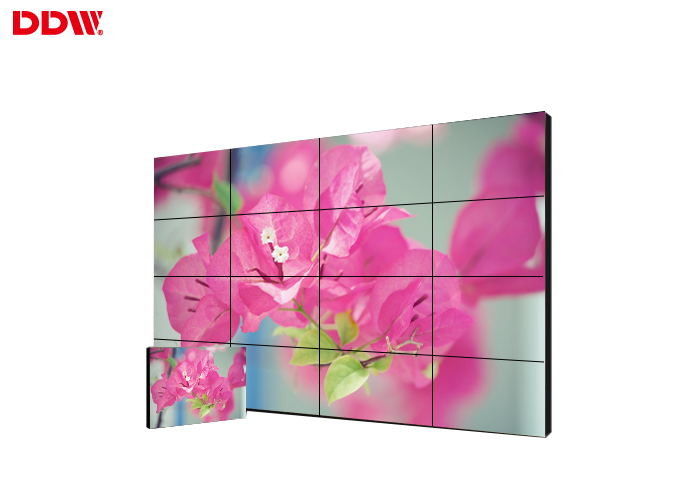

Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen
Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen
Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen

Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW490DUN-TJB1

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

ultra narrow bezel video wall

,

multi screen video wall

Product Name:
Thin Bezel Video Wall
Bezel Width:
1.8 Mm
Type:
Touch Screen
Brightness:
500 Nits
Panel Brand:
LG
Aspect Ratio:
16:9
Refresh Rate:
60Hz
Application:
Control Room
Product Name:
Thin Bezel Video Wall
Bezel Width:
1.8 Mm
Type:
Touch Screen
Brightness:
500 Nits
Panel Brand:
LG
Aspect Ratio:
16:9
Refresh Rate:
60Hz
Application:
Control Room
Product Description

Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen





Thin Bezel Video Wall informations:

  • With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
  • Adapting modular components, making maintenance operations and parts replacement very easily;
  • The installation method: front push hydraulic pop out;
  • Dot Pitch: 0.53 mm(H)* 0.53 mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  • Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;



Thin Bezel Video Wall Applications



CCTV control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



Thin Bezel Video Wall ​Specifications



Model No: DDW-LW490DUN-TJB1 Thin Bezel Video Wall
Active Screen Diagonal 49"
TotalBezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1075.38x605.8x53.6mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



Thin Bezel Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)




Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen 0Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen 1Touch Screen Thin Bezel Video Wall , Control Room Video Display Screen 2

Tags:

video display walls,

narrow bezel video wall,

hd video wall
