Highlight:
ultra narrow bezel video wall
, multi screen video wall

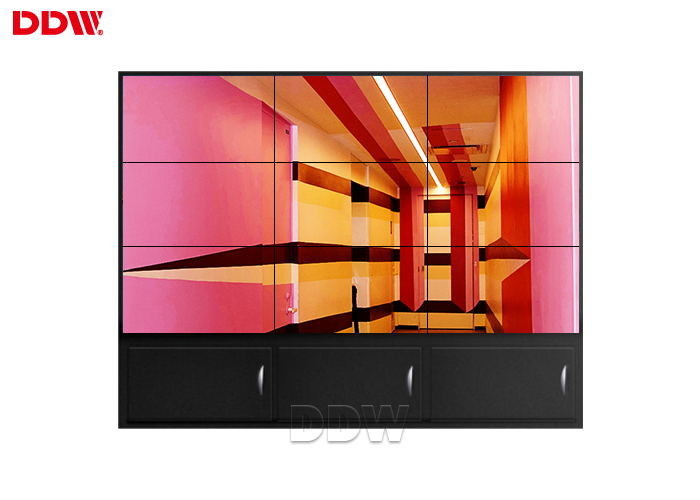

Full Color LCD Video Wall Display Board 2 X HDMI Input 700 Nits Brightness
LCD Video Wall Display Applications
LCD Video Wall Display is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.
LCD Video Wall Display features
1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
2. HD video wall unit--- High brightness,high contrast,high gamut .
3. Flexible structure design ---easy installation ,extensible,arbitrary combination
4. Stable performance,suitable working for a long time
5. Original Innolux commercial grade lcd video wall panel ,16:9 Innolux a-Si TFT-LCD
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
LCD Video Wall Display Specifications
| Model No: |
DDW-DV550FHM-NV3 LCD Video Wall Display |
| Active Screen Diagonal |
55" |
| Total Bezel Width |
3.5 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
700 cd/㎡ |
| Contrast |
5000:1 |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x60.39 mm |
| White Point |
10,000 K |
| Display Colors |
1.07GB colors |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
≦160W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0℃～50℃ |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
LCD Video Wall Display Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
