| Input Output Numbers: | 4 Input 4 Output | Output Resolution: | 1920*1080 |
|---|---|---|---|
| Color Quality: | 32bit | Roam,zoom,PIP: | Support |
| Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP | Product Keywords: | IP Videowall Processor |
| OEM: | Yes | Working Time: | 365x7x24hrs |
| High Light: | multi display processor,video display wall controller |
||

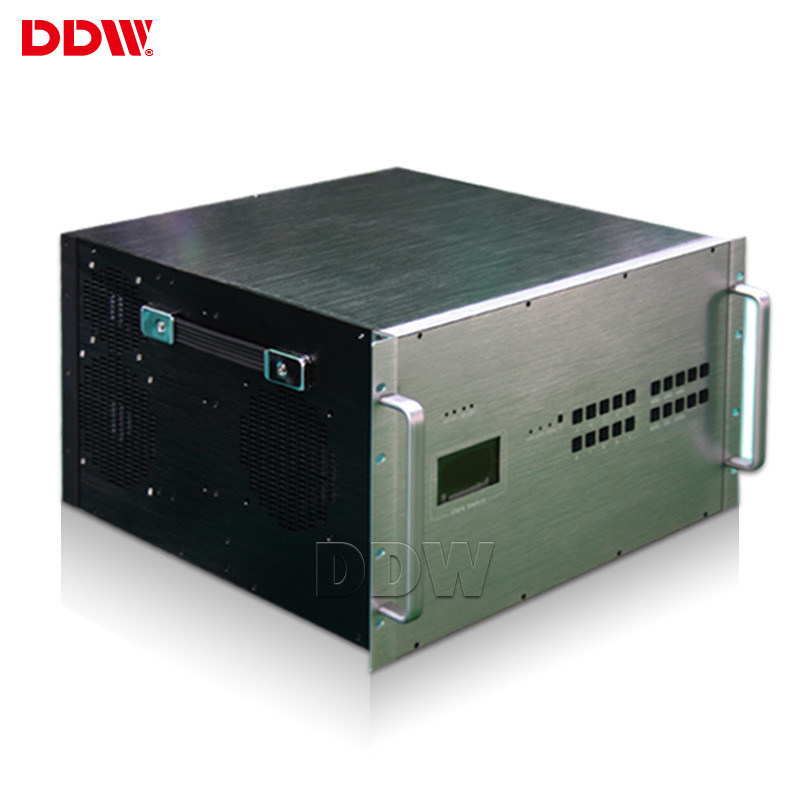

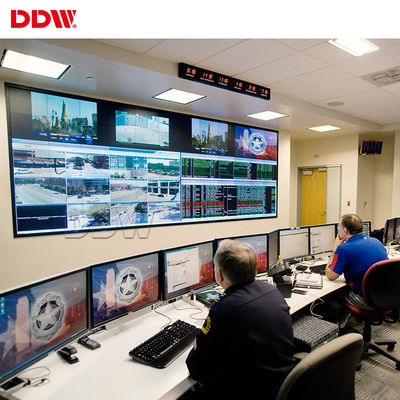

12W/Channel 4k Video Wall Processor with Special Control Software RJ-45 Female
Pure hardware architecture board any combination:
Industrial chassis with CPCI structure;
Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;
Multi – group video wall management:
It can manage several sets of splicing walls at the same time, common input signal sources between splicing walls, and the output does not interfere with each other;
Setting different resolutions, adjust colors and other parameters.
Support PC, mobile control software pre-monitoring display
Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
The operating signal source can be selected more intuitively as needed;
Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured
DDW Video Wall Processor Technical Specifications
| Model series | With CBD | Function | No CBD | ||||
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show differentsigal at the same time to the system,require screen built in daisy chain board | ~ | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays | ||||
| Input signal(optional) | CVBS | Support PAL/NTSC format, multiple BNC ports | ~ | ||||
| VGA/RGBHV | Multi-channel VGA DB-15 ports, support VGA full-format input | ~ | |||||
| HDMI, DVI, 4K-DVI, IP | Support 4K(3840x2160) input, each IP decode 4 channels | ~ | |||||
| YPbPr, YCbCr(customizable) | The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV | ~ | |||||
| SDI(customizable) | BNC Port | ~ | |||||
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; | ~ | ~ | |||||
| Input resolution | up to 4K,commonly used resolutions | ||||||
| Output signal format | VGA, RGBHV | signal channel XGA(1024x768@60Hz)/DB-15 port | ~ | ||||
| HDMI, DVI, 4K-DVI | HDMI, DVI output | ~ | |||||
| 3G SDI(customzable) | BNC Port loop out | ~ | |||||
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; | ~ | ~ | |||||
| Output resolution | up to 4K,commonly used resolutions | ||||||
| Control | Standard RS232 port | ||||||
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) | |||||||
| System control software | Special control software | ||||||
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | ||||||
| Consumption | 12W/channel | ||||||
| Working temperature | -20°C——60°C | ||||||
| Working Humidity | 5-95% | ||||||
| Case specification | 2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis | ||||||
| Serial Control Interface | RS-232,9-pin female, Type-D | ||||||
| Baud Rate | 115200 | ||||||
| Pin configuration | 2=TX,3=RX,5=GND | ||||||
| Ethernet control interface | RJ-45 female, TCP/IP | ||||||
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | ||||||
| Working time | 365x7x24hrs | ||||||
Hareware video wall controller U Chassis Specs
| Chassis U size | Controller Dims(mm) L*W*H |
Pack dims(mm) L*W*H |
N.W(kg) | G.W(kg) | Max input Nos. | Max output Nos. | Max Power Consumption(Watts) |
| 2U | 406×440×102 | 590×530×190 | 11.25 | 12.25 | 8 | 8 | 200 |
| 3.5U | 450x440x170 | 620x620x270 | 18.25 | 19.25 | 16 | 16 | 320 |
| 7U | 442×402×320 | 590×530×460 | 29.5 | 31.50 | 32 | 32 | 400 |
| 12.5U | 446×440×553 | 625×580×725 | 37.85 | 39.85 | 71 | 68 | 750 |
| 23U | 442×43×1022 | 615×570×1180 | 80.46 | 82.46 | 143 | 140 | 1300 |
