1920x1080 2x2 Video Wall Processor For LCD Video Wall System HDMI DVI VGA

Name: 1920x1080 2x2 Video Wall Processor For LCD Video Wall System HDMI DVI VGA
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-VPH0404
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC , 3C

Model Number: DDW-VPH0404

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit/Units

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                multi display processor, video matrix processor


Output Resolution:	1920x1080	Max PIP Per Screen:	1,4,16,customization
Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP	Output Resolution:	Up To 4k
Product Name:	Video Wall Processor	Baud Rate:	115200
Working Time:	365x7x24hrs	Working Temperature:	-20°C——60°C

Output Resolution:	1920x1080
Max PIP Per Screen:	1,4,16,customization
Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Output Resolution:	Up To 4k
Product Name:	Video Wall Processor
Baud Rate:	115200
Working Time:	365x7x24hrs
Working Temperature:	-20°C——60°C

Product Description

1920x1080 Video Wall Processor For 2x2 LCD Video Wall System HDMI DVI VGA

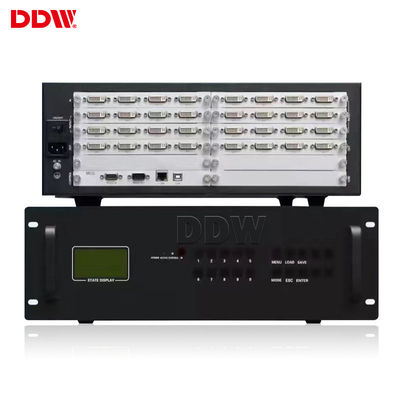

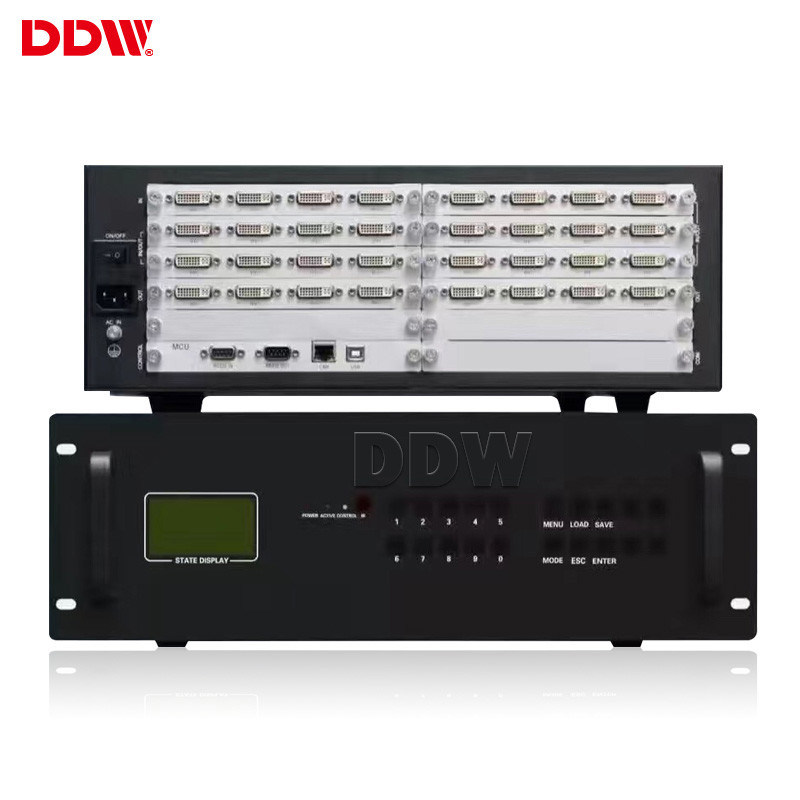

DDW Video Wall Processor Introduction

DDW Video Wall Processor is one of professional modularized and hardware Video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.

DDW Video Wall Processor key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200

DDW Video Wall Processor Technical Specifications

Model series	With CBD	Function	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show differentsigal at the same time to the system,require screen built in daisy chain board	~	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Control	Standard RS232 port
	IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs

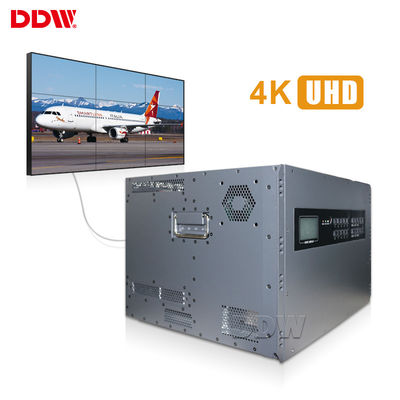

Hareware video wall controller U Chassis Specs

Chassis U size	Controller Dims(mm) LWH	Pack dims(mm) LWH	N.W(kg)	G.W(kg)	Max input Nos.	Max output Nos.	Max Power Consumption(Watts)
2U	406×440×102	590×530×190	11.25	12.25	8	8	200
3.5U	450x440x170	620x620x270	18.25	19.25	16	16	320
7U	442×402×320	590×530×460	29.5	31.50	32	32	400
12.5U	446×440×553	625×580×725	37.85	39.85	71	68	750
23U	442×43×1022	615×570×1180	80.46	82.46	143	140	1300

1920x1080 2x2 Video Wall Processor For LCD Video Wall System HDMI DVI VGA 0
