| Output Resolution: | 1920x1080 | Max PIP Per Screen: | 1,4,16,customization |
|---|---|---|---|
| Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP | Product Name: | Video Wall Controller Matrix |
| Baud Rate: | 115200 | Working Time: | 365x7x24hrs |
| AC IN: | AC100-240V | IR IN: | 1 |
| High Light: | video wall multiplexer,video matrix controller |
||
Datapath 4X4 Video Wall Matrix RS232 / IP Control Method
DDW Video Wall Matrix Introduction

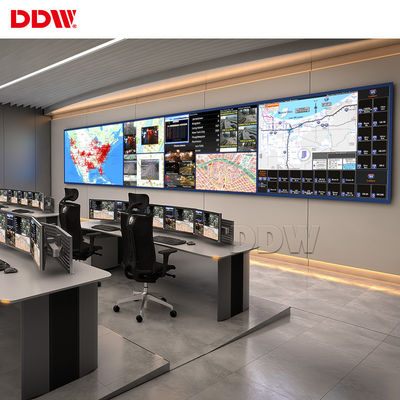

DDW Video Wall Matrix is one of professional modularized and hardware Video wall processor which supports HDMI,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
DDW Video Wall Matrix key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200
DDW Video Wall Matrix Technical Specifications
| Item No. | Components | Descriptions | QTY/signal | signal type | |||||

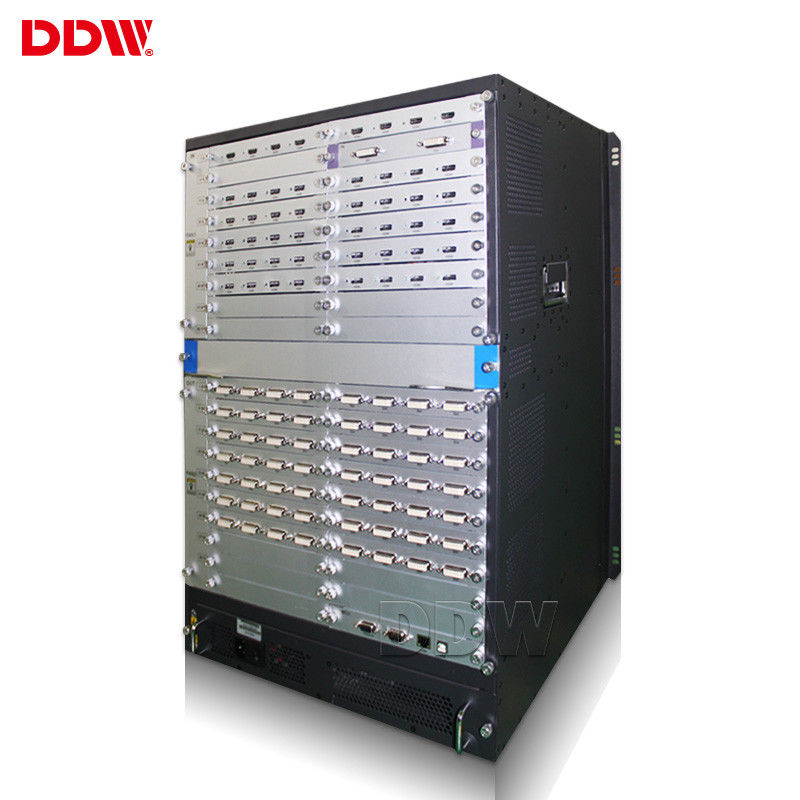

| 1 | Video wall Matrix SwitcherDDW-VM0404 | 4HDMI input ,4HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board | 8 | HDMI | |||||
| 2 | Software | Installed in PC to control,OS windows | 1 | ||||||
| 3 | Accessories | Power plug,IR Controller,English Manual | 1 | ||||||
| input card | |||||||||
| interface | 4*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, HDCP 1.3, compatible DVI1..0 | ||||||||
| EDID | support | ||||||||
| input bandwidth | 165MHZ | ||||||||
| resolution | HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ | ||||||||
| output card | |||||||||
| interface | 4*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, VGA 1.0, compatible DVI1..0 | ||||||||
| output bandwidth | 165MHZ | ||||||||
| output resolution |
1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz |
||||||||
| switch effect | seamless switching | ||||||||
| System function | |||||||||
| RS232 IN | 1 | ||||||||
| IR IN | 1 | ||||||||
| AC IN | AC100-240V | ||||||||
| Color System Support | PAL/NTSC/SECAM | ||||||||
| Control Type | IR Remote &Software Control | ||||||||
| Menu Language | English/Chinese(Multiple Language can be customized) | ||||||||
| Vertical/Horizontal Display | Support | ||||||||
| Combine Display | Support combine any horizental &vertical numbers of screens and show display | ||||||||
| Support combine all screens together to show one image | |||||||||
| Solid Display | Support each screen input with separate signal | ||||||||
| PIP/Zoom/Roaming | NO | ||||||||
| Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs | ||||||||
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs | ||||||||
| Payment Terms &Conditions | |||||||||
| Warranty: 3years warranty,extra fee will be charged for additional years warranty. | |||||||||
Technical specification of input/output connectors
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
