Place of Origin: | Guangdong, China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
Model Number: | DDW-VM0808 |
Minimum Order Quantity: | 10 Unit/Unit |
Price: | Negotiable |
Packaging Details: | Double layer carton pack |
Delivery Time: | 3working days upon payment |
Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
Supply Ability: | 1000pcs/month |
Product Name: | Video Wall Matrix | Output Resolution: | 1920x1080 |
---|---|---|---|
Roam,zoom,PIP: | Support | Max PIP Per Screen: | 1,4,16,customization |
Color Quality: | 32bit | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
Input Numbers: | 8 | Output Numbers: | 8 |
High Light: | video wall multiplexer,multi screen video controller |

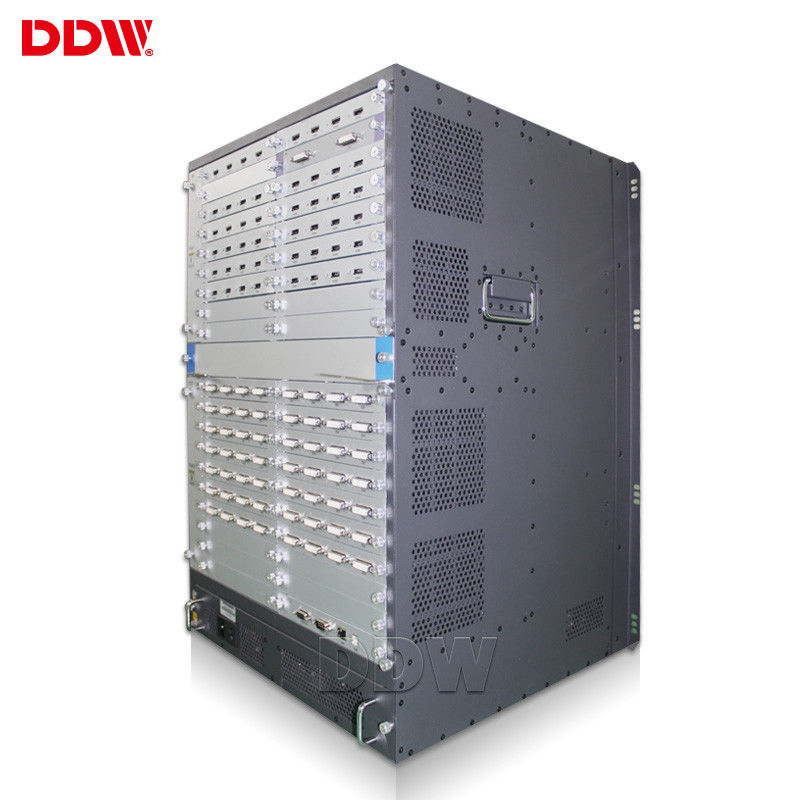

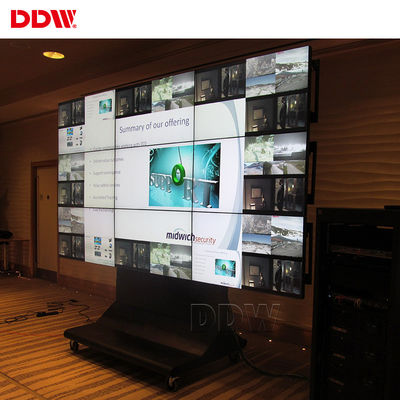

Customized Video Wall Processor APP Remote Control 128 Maximum Output Numbers
Video Wall Matrix basic information:
1. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch
2. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
3. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
4. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
5. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
6. Public Service: Hospital, School, Telecom, Post office, etc.
7. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
LCD Video Wall Matrix key features:
1, Compact and expandable inputs and outputs
40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.
2, Power-saving design
Build-in power-saving graphics board and parts reduction effect by one unit structure design.
3, Easy Replacement
Rear detachable input-output board introduction and expansion can be easily.
User can replace the input and output board with a single unit without removing the entire chassis from the rack.
4, 2 split ~ 4 split display function (one single screen)
One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.
5, Video Wall configuration support
iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.
6, Seamless Switching Processor Inside
No joints , no black screen , smooth video switching processor inside.
DDW Video Wall Matrix Technical Specifications
Item No. | Components | Descriptions | QTY/signal | signal type | |||||
1 | Video wall Matrix SwitcherDDW-VM128128 | 128HDMI input ,128HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board | 256 | HDMI | |||||
2 | Software | Installed in PC to control,OS windows | 1 | ||||||
3 | Accessories | Power plug,IR Controller,English Manual | 1 | ||||||
input card | |||||||||
interface | 128*HDMI type a | ||||||||
signal protocal | HDMI 1.3, HDCP 1.3, compatible DVI1..0 | ||||||||
EDID | support | ||||||||
input bandwidth | 165MHZ | ||||||||
resolution | HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ | ||||||||
output card | |||||||||
interface | 128*HDMI type a | ||||||||
signal protocal | HDMI 1.3, VGA 1.0, compatible DVI1..0 | ||||||||
output bandwidth | 165MHZ | ||||||||
output resolution |
1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz |
||||||||
switch effect | seamless switching | ||||||||
System function | |||||||||
RS232 IN | 1 | ||||||||
IR IN | 1 | ||||||||
AC IN | AC100-240V | ||||||||
Color System Support | PAL/NTSC/SECAM | ||||||||
Control Type | IR Remote &Software Control | ||||||||
Menu Language | English/Chinese(Multiple Language can be customized) | ||||||||
Vertical/Horizontal Display | Support | ||||||||
Combine Display | Support combine any horizental &vertical numbers of screens and show display | ||||||||
Support combine all screens together to show one image | |||||||||
Solid Display | Support each screen input with separate signal | ||||||||
PIP/Zoom/Roaming | NO | ||||||||
Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs | ||||||||
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs | ||||||||
Payment Terms &Conditions | |||||||||
Warranty: 3years warranty,extra fee will be charged for additional years warranty. |
Technical specification of input/output connectors
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640*480/60HZ—1920*1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
