| Input Numbers: | 12 | Output Numbers: | 12 |
|---|---|---|---|
| Color Quality: | 32bit | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
| Control Method: | RS232,LAN | Product Name: | Video Wall Matrix |
| Working Humidity: | 5-95% | Max PIP Per Screen: | 1,4,16,customization |
| High Light: | video wall multiplexer,video matrix controller |
||

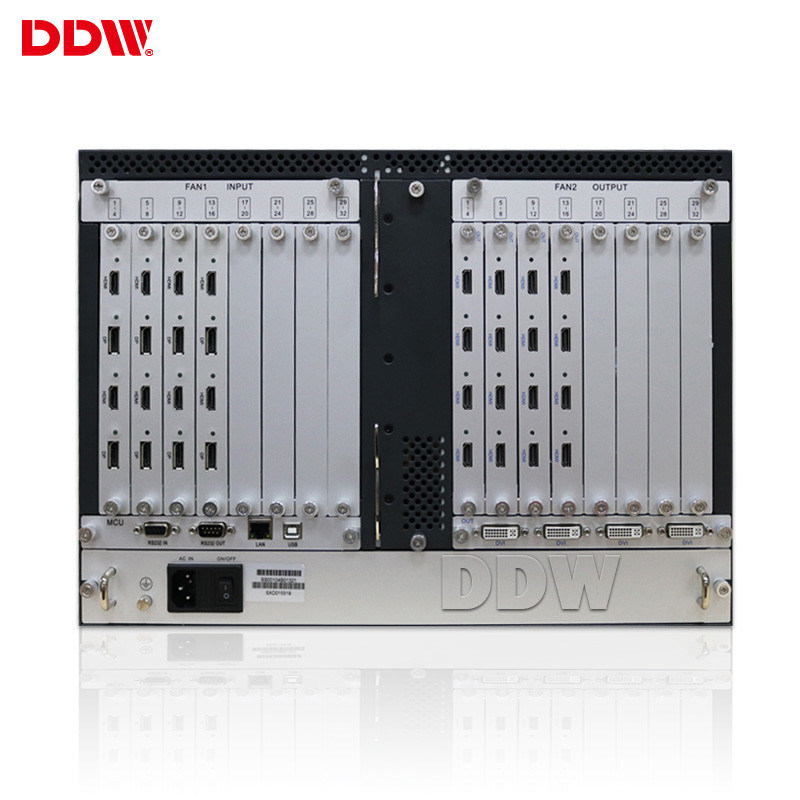

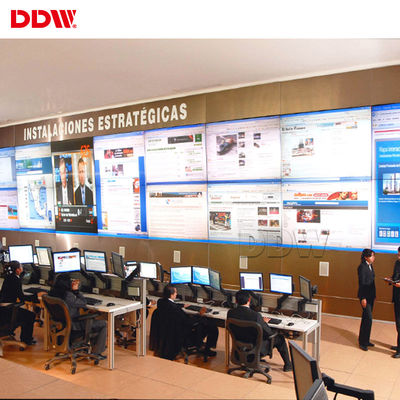

Full Screen Display Video Wall Matrix Multi HDMI RS232 / DVI / VGA Interface
LCD Video Wall Matrix key features:
Simplified installation & disassembly
Pure hardware architecture board any combination:
DDW Video Wall Matrix Technical Specifications
| Item No. | Components | Descriptions | QTY/signal | signal type | |||||
| 1 | Video wall Matrix SwitcherDDW-VM1212 | 12HDMI input ,12HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board | 24 | HDMI | |||||
| 2 | Software | Installed in PC to control,OS windows | 1 | ||||||
| 3 | Accessories | Power plug,IR Controller,English Manual | 1 | ||||||
| input card | |||||||||
| interface | 12*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, HDCP 1.3, compatible DVI1..0 | ||||||||
| EDID | support | ||||||||
| input bandwidth | 165MHZ | ||||||||
| resolution | HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ | ||||||||
| output card | |||||||||
| interface | 12*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, VGA 1.0, compatible DVI1..0 | ||||||||
| output bandwidth | 165MHZ | ||||||||
| output resolution | 1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, | ||||||||
| switch effect | seamless switching | ||||||||
| System function | |||||||||
| RS232 IN | 1 | ||||||||
| IR IN | 1 | ||||||||
| AC IN | AC100-240V | ||||||||
| Color System Support | PAL/NTSC/SECAM | ||||||||
| Control Type | IR Remote &Software Control | ||||||||
| Menu Language | English/Chinese(Multiple Language can be customized) | ||||||||
| Vertical/Horizontal Display | Support | ||||||||
| Combine Display | Support combine any horizental &vertical numbers of screens and show display | ||||||||
| Support combine all screens together to show one image | |||||||||
| Solid Display | Support each screen input with separate signal | ||||||||
| PIP/Zoom/Roaming | NO | ||||||||
| Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs | ||||||||
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs | ||||||||
| Payment Terms &Conditions | |||||||||
| Warranty: 3years warranty,extra fee will be charged for additional years warranty. | |||||||||
Technical specification of input/output connectors
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
