| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
| Model Number: | DDW-VM144144 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| Control Method: | RS232,IP | Output Resolution: | 1920*1080 |
|---|---|---|---|
| Color Quality: | 32bit | Roam,zoom,PIP: | Support |
| Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP | Product Keywords: | Video Wall Matrix |
| Weight: | 5-100kg | RS232 IN: | 1 |
| High Light: | video matrix controller,multi screen video controller |
||

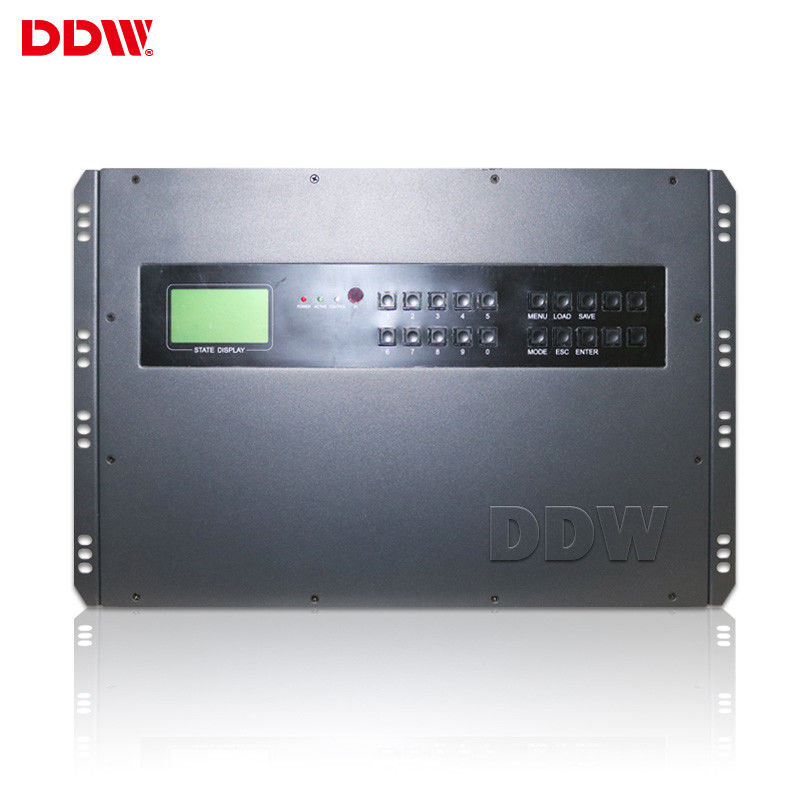

Large Video Wall Display Video Wall Matrix 144 Maximum Output / Input Multi Screen Controller
Video Wall Matrix basic information:
1. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch

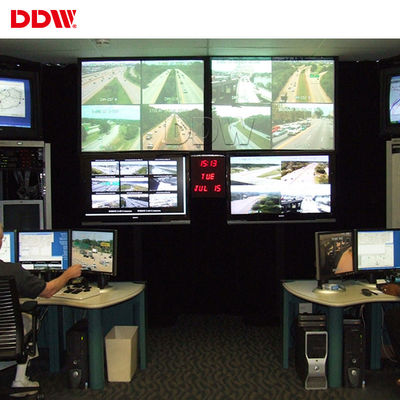

2. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
3. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
4. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
5. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
6. Public Service: Hospital, School, Telecom, Post office, etc.
7. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured
DDW Video Wall Matrix Technical Specifications
| Item No. | Components | Descriptions | QTY/signal | signal type | |||||
| 1 | Video wall Matrix Switcher DDW-VM144144 | 144HDMI input ,144HDMI output , pure hardware , support multiple splicing player freely, and can show different sigal at the same time to the system,require screen built in daisy chain board | 288 | HDMI | |||||
| 2 | Software | Installed in PC to control,OS windows | 1 | ||||||
| 3 | Accessories | Power plug,IR Controller,English Manual | 1 | ||||||
| input card | |||||||||
| interface | 144*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, HDCP 1.3, compatible DVI1..0 | ||||||||
| EDID | support | ||||||||
| input bandwidth | 165MHZ | ||||||||
| resolution | HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ | ||||||||
| output card | |||||||||
| interface | 144*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, VGA 1.0, compatible DVI1..0 | ||||||||
| output bandwidth | 165MHZ | ||||||||
| output resolution |
1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz |
||||||||
| switch effect | seamless switching | ||||||||
| System function | |||||||||
| RS232 IN | 1 | ||||||||
| IR IN | 1 | ||||||||
| AC IN | AC100-240V | ||||||||
| Color System Support | PAL/NTSC/SECAM | ||||||||
| Control Type | IR Remote &Software Control | ||||||||
| Menu Language | English/Chinese(Multiple Language can be customized) | ||||||||
| Vertical/Horizontal Display | Support | ||||||||
| Combine Display | Support combine any horizental &vertical numbers of screens and show display | ||||||||
| Support combine all screens together to show one image | |||||||||
| Solid Display | Support each screen input with separate signal | ||||||||
| PIP/Zoom/Roaming | NO | ||||||||
| Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs | ||||||||
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs | ||||||||
| Payment Terms &Conditions | |||||||||
| Warranty: 3years warranty,extra fee will be charged for additional years warranty. | |||||||||
Technical specification of input/output connectors
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
