| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC , 3C |
| Model Number: | DDW-VM0202 |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| Product Name: | 2x2 Video Wall Matrix | Input Output Numbers: | 2 Input 2 Output |
|---|---|---|---|
| Output Resolution: | 1920*1080 | Max PIP Per Screen: | 1,4,16,customization |
| Color Quality: | 32bit | Input Output Signal Sources: | HDMI,DVI,VGA,AV,YPBPR,IP |
| Control Method: | RS232,LAN | EDID: | Support |
| High Light: | video matrix controller,multi screen video controller |
||

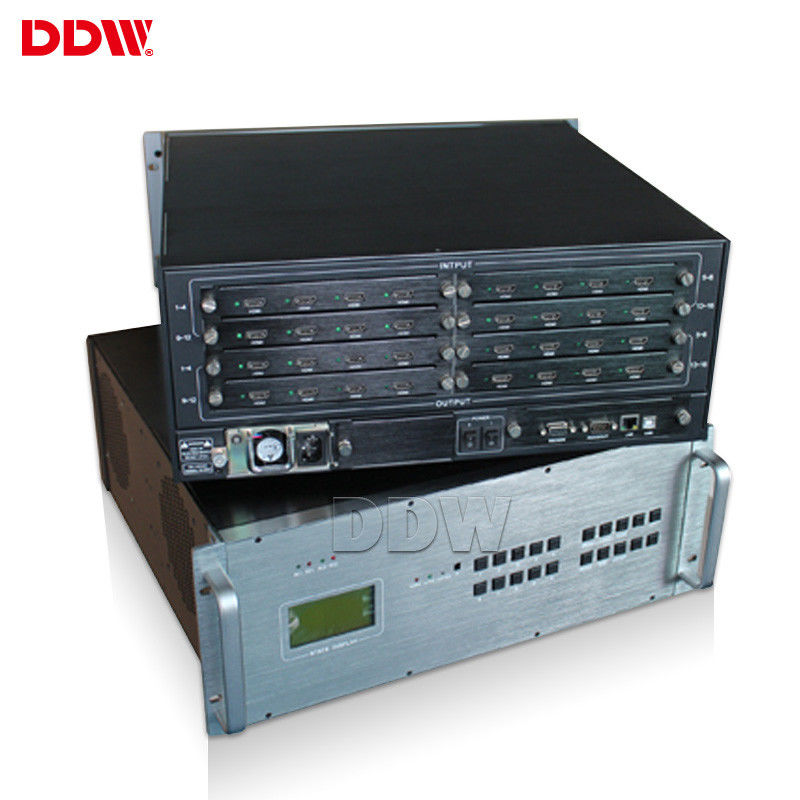

2x2 Video Wall Matrix Hdmi Standalone Daisy Chain Multi Display Controller For Exhibition Hall
Video Wall Matrix has following key features:
1. Real time image display, no dropped frames
2. Flexibility to increase the input/output board
3. Support partial input and output cards with mixed interpolation
4. Input/output card supports hot-swappable, plug-and-play functionality
5. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
6. Support display at arbitrary position, at any size and any superimposed
7. Support open-window effects processing
8. Support large-screen image freeze
9. Full hardware configuration without operating system
10. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured.
DDW Video Wall Matrix Technical Specifications
| Item No. | Components | Descriptions | QTY/signal | signal type | |||||
| 1 | Video wall Matrix SwitcherDDW-VM0202 | 2HDMI input ,2HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board | 4 | HDMI | |||||
| 2 | Software | Installed in PC to control,OS windows | 1 | ||||||
| 3 | Accessories | Power plug,IR Controller,English Manual | 1 | ||||||
| input card | |||||||||
| interface | 2*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, HDCP 1.3, compatible DVI1..0 | ||||||||
| EDID | support | ||||||||
| input bandwidth | 165MHZ | ||||||||
| resolution | HDTV 1920*1080@60HZ, HDCP 1920*1200@60HZ | ||||||||
| output card | |||||||||
| interface | 2*HDMI type a | ||||||||
| signal protocal | HDMI 1.3, VGA 1.0, compatible DVI1..0 | ||||||||
| output bandwidth | 165MHZ | ||||||||
| output resolution |
1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz, |
||||||||
| switch effect | seamless switching | ||||||||
| System function | |||||||||
| RS232 IN | 1 | ||||||||
| IR IN | 1 | ||||||||
| AC IN | AC100-240V | ||||||||
| Color System Support | PAL/NTSC/SECAM | ||||||||
| Control Type | IR Remote &Software Control | ||||||||
| Menu Language | English/Chinese(Multiple Language can be customized) | ||||||||
| Vertical/Horizontal Display | Support | ||||||||
| Combine Display | Support combine any horizental &vertical numbers of screens and show display | ||||||||
| Support combine all screens together to show one image | |||||||||
| Solid Display | Support each screen input with separate signal | ||||||||
| PIP/Zoom/Roaming | NO | ||||||||
| Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs | ||||||||
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs | ||||||||
| Payment Terms &Conditions | |||||||||
| Warranty: 3years warranty,extra fee will be charged for additional years warranty. | |||||||||
Technical specification of input/output connectors
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
