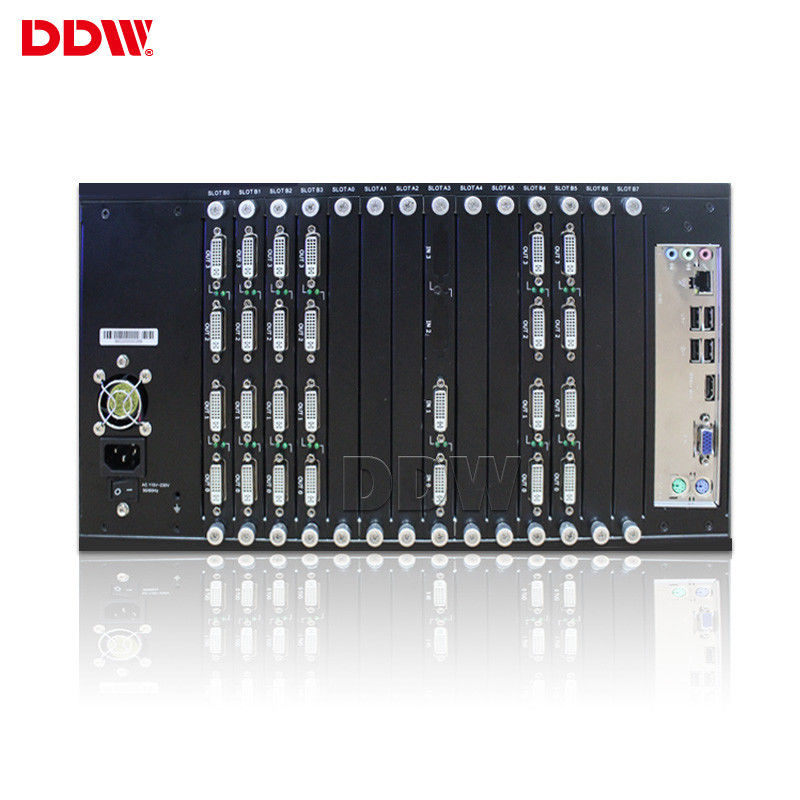

Full HD DVI Video Wall Controller , RS232 LAN Control Video Display Wall Controller

Name: Full HD DVI Video Wall Controller , RS232 LAN Control Video Display Wall Controller
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-VM3636
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC , 3C

Model Number: DDW-VM3636

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                video wall multiplexer, video matrix controller


Product Name:	Video Wall Matrix	Maximum Input Numbers:	36
Maximum Output Numbers:	36	Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN	Baud Rate:	115200
Output Resolution:	Up To 1920x1200/60HZ	EDID:	Support

Product Name:	Video Wall Matrix
Maximum Input Numbers:	36
Maximum Output Numbers:	36
Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN
Baud Rate:	115200
Output Resolution:	Up To 1920x1200/60HZ
EDID:	Support

Product Description

Full HD Video Wall Matrix 1920 X 1200 Output 3840 X 2160 Input RS232 LAN Control

Support PC, mobile control software pre-monitoring display

Supporting users to preview all input signals in real time on the mobile terminal of PC and control software;
The operating signal source can be selected more intuitively as needed;
On the interface, you can view large-screen real-time echo images to improve the operator’s work efficiency and prevent misuse;

Video Wall Matrix key features:

With special virtual display technology, full channel real HD 1080P signal processing;
Signal Preview function available;
Supporting PC, Android APK, iOS APP control software;
Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
Scaling and positioning, size is scalable and position adjustable;
With background logo display function. It can be customized;

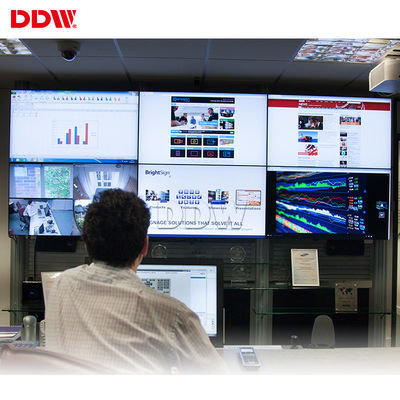

Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

DDW Video Wall Matrix Technical Specifications

Item No.	Components	Descriptions	QTY/signal	signal type
1	Video wall Matrix SwitcherDDW-VM3636	36HDMI input ,36HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	72	HDMI
2	Software	Installed in PC to control,OS windows	1
3	Accessories	Power plug,IR Controller,English Manual	1
input card
interface		36*HDMI type a
signal protocal		HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID		support
input bandwidth		165MHZ
resolution		HDTV 19201080@60HZ, HDCP 19201200@60HZ
output card
interface		36*HDMI type a
signal protocal		HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth		165MHZ
output resolution		1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz
switch effect		seamless switching
System function
RS232 IN		1
IR IN		1
AC IN		AC100-240V
Color System Support		PAL/NTSC/SECAM
Control Type		IR Remote &Software Control
Menu Language		English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display		Support
Combine Display		Support combine any horizental &vertical numbers of screens and show display
		Support combine all screens together to show one image
Solid Display		Support each screen input with separate signal
PIP/Zoom/Roaming		NO
Multiple Interfaces		Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution		Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.

Technical specification of input/output connectors

VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640480/60HZ—19201200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024x768/60HZ-1920x1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female

Full HD DVI Video Wall Controller , RS232 LAN Control Video Display Wall Controller 0
