Home > products > LCD Video Wall > 32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable

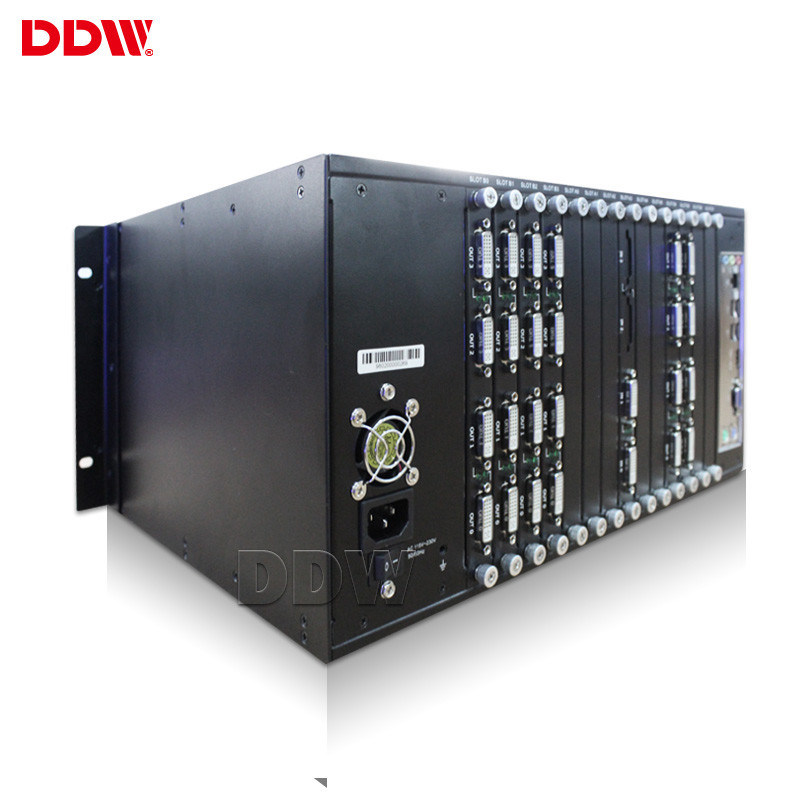

32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable

Name: 32bit Color Video Wall HDMI Controller For Security Video Wall Display Durable
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-VM0808
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC , 3C

Model Number: DDW-VM0808

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit/Units

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                video wall multiplexer, video matrix controller


Signal Input:	8 X HDMI	Signal Output:	8 X HDMI
Roam,zoom,PIP:	Support	Color Quality:	32bit
Application:	Conference Room	Control Method:	RS232,IP
Product Name:	Hdmi Matrix Video Wall	EDID:	Support

Signal Input:	8 X HDMI
Signal Output:	8 X HDMI
Roam,zoom,PIP:	Support
Color Quality:	32bit
Application:	Conference Room
Control Method:	RS232,IP
Product Name:	Hdmi Matrix Video Wall
EDID:	Support

Product Description

32bit Color Quality Video Wall Matrix Security Video Wall Display

Video Wall Matrix Key Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Flexibility to increase the input/output board
5. Support partial input and output cards with mixed interpolation
6. Input/output card supports hot-swappable, plug-and-play functionality
7. Output resolution up to 1920 x 1200
8. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
9. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
10. Redundant power supply design, thermostatically controlled fan
11. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments

Video Wall Matrix Simplified installation & disassembly

Flexible modular design, Input and output card board;
Support input of a variety of interfaces and signal source;
Matching features, pre-monitoring;
Echo function, input and output characters display with superimposed;

Pure hardware architecture board any combination:

Industrial chassis with CPCI structure;
Modular design, dual backup redundant power supply support hot backup, fan and other modules at will;
Supporting the system processing module hot-swappable, provide various types of chassis and board, for customers to save costs;

Video Wall Matrix Description

Item No.	Components	Descriptions	QTY/signal	signal type
1	Video wall Matrix SwitcherDDW-VM0808	8 HDMI input ,8 HDMI output , pure hardware , support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	16	HDMI
2	Software	Installed in PC to control,OS windows	1
3	Accessories	Power plug,IR Controller,English Manual	1
input card
interface		8*HDMI type a
signal protocal		HDMI 1.3, HDCP 1.3, compatible DVI1..0
EDID		support
input bandwidth		165MHZ
resolution		HDTV 19201080@60HZ, HDCP 19201200@60HZ
output card
interface		8*HDMI type a
signal protocal		HDMI 1.3, VGA 1.0, compatible DVI1..0
output bandwidth		165MHZ
output resolution		1920x1200@60Hz,1920x1080@60Hz,1680x1050@60Hz,1600x1200@60Hz, 1600x900@60Hz,1440x900@60Hz,1400x1050@60Hz,1366x768@60Hz, 1280x1024@60Hz,1280x960@60Hz,1280x800@60Hz,1280x720@60Hz, 1024x768@60Hz,800x600@60Hz
switch effect		seamless switching
System function
RS232 IN		1
IR IN		1
AC IN		AC100-240V
Color System Support		PAL/NTSC/SECAM
Control Type		IR Remote &Software Control
Menu Language		English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display		Support
Combine Display		Support combine any horizental &vertical numbers of screens and show display
		Support combine all screens together to show one image
Solid Display		Support each screen input with separate signal
PIP/Zoom/Roaming		NO
Multiple Interfaces		Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution		Support 1080P,1080I,720P,480P &multiple resolution inputs
Payment Terms &Conditions
Warranty: 3years warranty,extra fee will be charged for additional years warranty.

Technical specification of input/output connectors

VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640480/60HZ—19201200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024768/60HZ-19201200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female
		female
