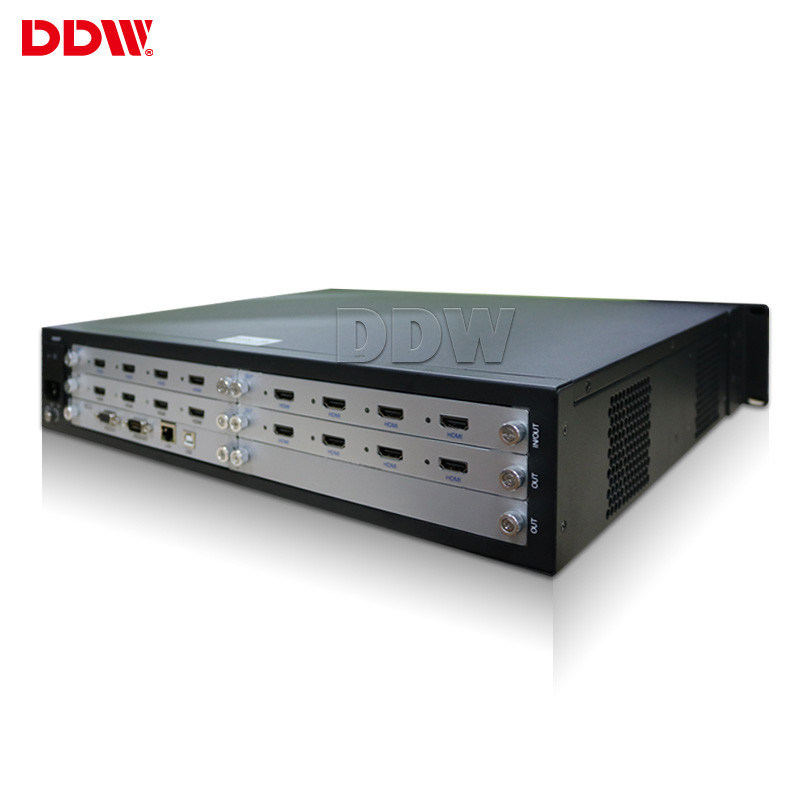

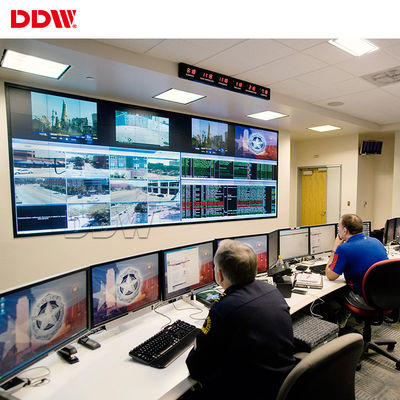

Drop Ship Pure Video Wall Scaler Each Channel FHD 1920 X 1080 RS232 LAN
Video and Image Processing:
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K resolution or a customizable resolution. Any source can be captured
Video Wall Scaler has following key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7*24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920*1080
12. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920*1200,control via RS-232 or Ethernet
13. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
14. Redundant power supply design, thermostatically controlled fan
15. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
DDW Video Wall Scaler Technical Specifications
| Model series |
With CBD |
Function |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different
sigal at the same time to the system,require screen built in daisy chain board
|
~ |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
CVBS |
Support PAL/NTSC format, multiple BNC ports |
~ |
| VGA/RGBHV |
Multi-channel VGA DB-15 ports, support VGA full-format input |
~ |
| HDMI, DVI, 4K-DVI, IP |
Support 4K(3840x2160) input, each IP decode 4 channels |
~ |
| YPbPr, YCbCr(customizable) |
The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV |
~ |
| SDI(customizable) |
BNC Port |
~ |
| AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized; |
~ |
~ |
| Input resolution |
up to 4K,commonly used resolutions |
| Output signal format |
VGA, RGBHV |
signal channel XGA(1024x768@60Hz)/DB-15 port |
~ |
| HDMI, DVI, 4K-DVI |
HDMI, DVI output |
~ |
| 3G SDI(customzable) |
BNC Port loop out |
~ |
| AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized; |
~ |
~ |
| Output resolution |
up to 4K,commonly used resolutions |
| Control |
Standard RS232 port |
| IR remote control(customzable), LAN contril, IOS, Android APP control( optional) |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365x7x24hrs |
Hareware video wall controller U Chassis Specs
| Chassis U size |
Controller Dims(mm)
L*W*H |
Pack dims(mm)
L*W*H |
N.W(kg) |
G.W(kg) |
Max input Nos. |
Max output Nos. |
Max Power Consumption(Watts) |
| 2U |
406×440×102 |
590×530×190 |
11.25 |
12.25 |
8 |
8 |
200 |
| 3.5U |
450x440x170 |
620x620x270 |
18.25 |
19.25 |
16 |
16 |
320 |
| 7U |
442×402×320 |
590×530×460 |
29.5 |
31.50 |
32 |
32 |
400 |
| 12.5U |
446×440×553 |
625×580×725 |
37.85 |
39.85 |
71 |
68 |
750 |
| 23U |
442×43×1022 |
615×570×1180 |
80.46 |
82.46 |
143 |
140 |
1300 |
