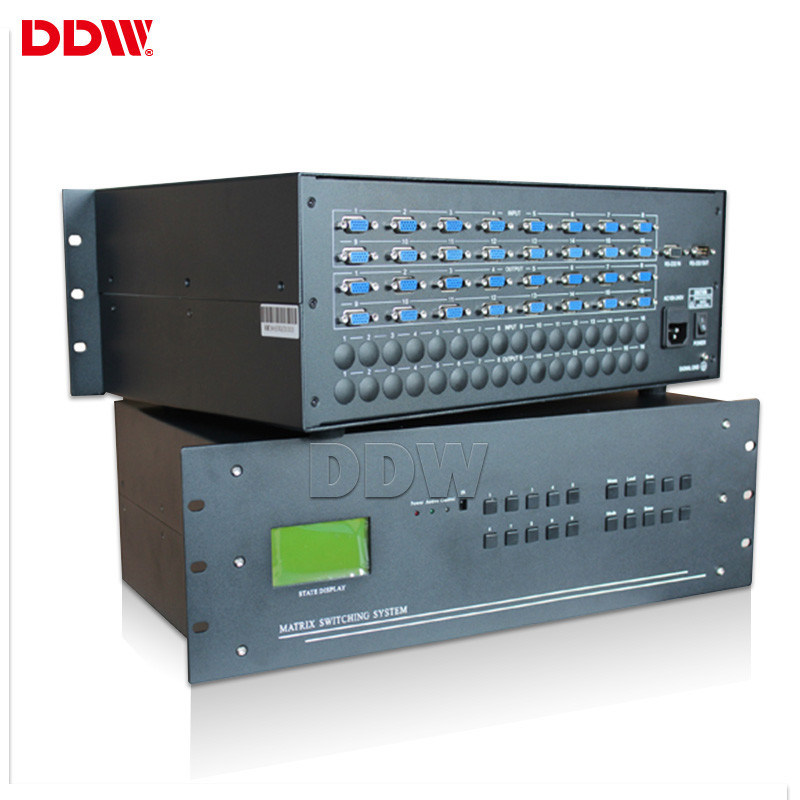

High Efficiency Multi Screen Controller , LCD Video Wall System Android PC HDMI Video Wall Processor

Name: High Efficiency Multi Screen Controller , LCD Video Wall System Android PC HDMI Video Wall Processor
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-VPH0909
Availability: InStock

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC , 3C

Model Number: DDW-VPH0909

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                multi screen controller, vga video wall processor


Product Name:	PC Video Wall Controller	Output Resolution:	1920*1080
Max PIP Per Screen:	1,4,16,customization	Color Quality:	32bit
Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP	Control Method:	RS232,LAN
Working Time:	365x7x24hrs	Consumption:	12W/channel

Product Name:	PC Video Wall Controller
Output Resolution:	1920*1080
Max PIP Per Screen:	1,4,16,customization
Color Quality:	32bit
Input Output Signal Sources:	HDMI,DVI,VGA,AV,YPBPR,IP
Control Method:	RS232,LAN
Working Time:	365x7x24hrs
Consumption:	12W/channel

Product Description

4K HDMI PC Video Wall Controller DVI DP VGA AV HD-SDI IP For LCD Video Wall System Android

Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

PC Video Wall Controller key features:

With special virtual display technology, full channel real HD 1080P signal processing;
Signal Preview function available;
Supporting PC, Android APK, iOS APP control software;
Image parameters( white balance, brightness, contrast, saturation) can be adjusted;
Scaling and positioning, size is scalable and position adjustable;
With background logo display function. It can be customized;

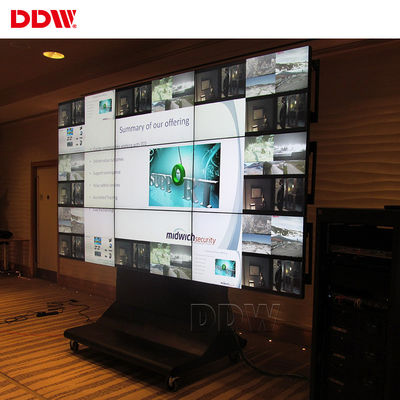

Applications: company meeting, monitoring, exhibition, public security, railway, military, meteorological, aviation, market, museum; monitoring, command and scheduling systems, public security, railway, military, meteorological, aviation;

DDW Video Wall Controller Technical Specifications

Model series	With CBD	Function	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, support multiple splicing player freely , and can show different sigal at the same time to the system,require screen built in daisy chain board	~	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	CVBS	Support PAL/NTSC format, multiple BNC ports	~
	VGA/RGBHV	Multi-channel VGA DB-15 ports, support VGA full-format input	~
	HDMI, DVI, 4K-DVI, IP	Support 4K(3840x2160) input, each IP decode 4 channels	~
	YPbPr, YCbCr(customizable)	The same connector of VGA, RGBHV signal, support PAL, NTSC format and 720P, 1080i HSTV	~
	SDI(customizable)	BNC Port	~
	AV, SD/HD/3G SDI, IP decoding, optical fiber, DP, HDBaseT, Preview monitoring card can be customized;	~	~
Input resolution	up to 4K,commonly used resolutions
Output signal format	VGA, RGBHV	signal channel XGA(1024x768@60Hz)/DB-15 port	~
	HDMI, DVI, 4K-DVI	HDMI, DVI output	~
	3G SDI(customzable)	BNC Port loop out	~
	AV, YPbPr,DVI-HDMI converter, SD, HD, DP, HDBaset can be customized;	~	~
Output resolution	up to 4K,commonly used resolutions
Control	Standard RS232 port
	IR remote control(customzable), LAN contril, IOS, Android APP control( optional)
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	2U, 3.5U, 7U,10U, 12.5U, 15U, 23U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs

Hareware video wall controller U Chassis Specs

Chassis U size	Controller Dims(mm) LWH	Pack dims(mm) LWH	N.W(kg)	G.W(kg)	Max input Nos.	Max output Nos.	Max Power Consumption(Watts)
2U	406×440×102	590×530×190	11.25	12.25	8	8	200
3.5U	450x440x170	620x620x270	18.25	19.25	16	16	320
7U	442×402×320	590×530×460	29.5	31.50	32	32	400
12.5U	446×440×553	625×580×725	37.85	39.85	71	68	750
23U	442×43×1022	615×570×1180	80.46	82.46	143	140	1300

High Efficiency Multi Screen Controller , LCD Video Wall System Android PC HDMI Video Wall Processor 0
