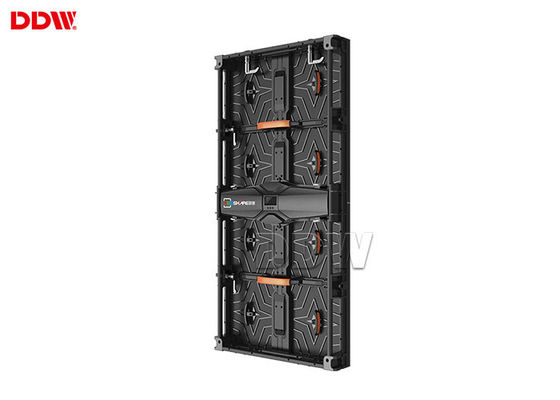

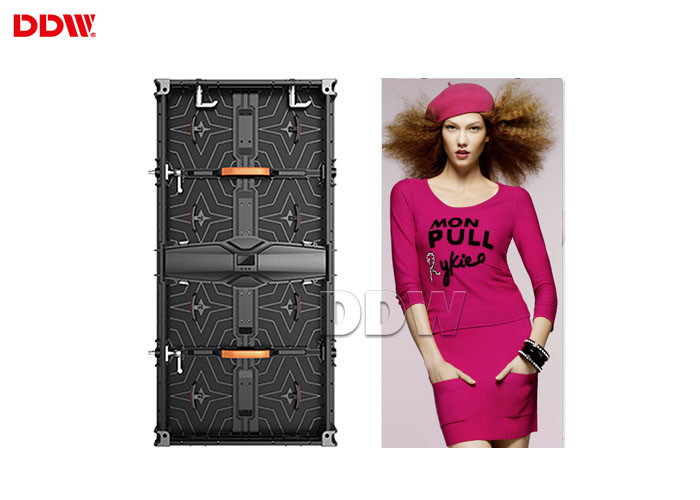

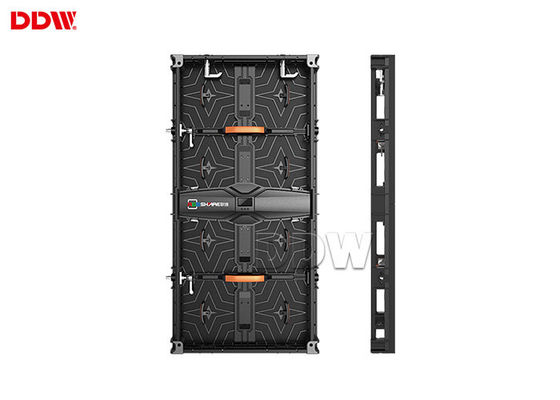

50/60 Hz Splice LED Video Wall TV Screens AC90-264V Pixel Density 43264 Dot/M2

Name: 50/60 Hz Splice LED Video Wall TV Screens AC90-264V Pixel Density 43264 Dot/M2
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-LEDP4.81
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LEDP4.81

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                seamless video wall displays, large display wall


Product Name:	LED Video Wall Display	Maitainence Mode:	Rear Maitainence
Panel Resolution:	104×208	Frame Frequency:	50/60 Hz
Refresh Rate:	3840Hz	Operating Power Source:	AC90~264V
Gray Scale:	65536	Pixel Pitch:	4.81mm

Product Name:	LED Video Wall Display
Maitainence Mode:	Rear Maitainence
Panel Resolution:	104×208
Frame Frequency:	50/60 Hz
Refresh Rate:	3840Hz
Operating Power Source:	AC90~264V
Gray Scale:	65536
Pixel Pitch:	4.81mm

Product Description

50/60 Hz LED Video Wall Display Operating AC90-264V With Die-Case Aluminum

LED Video Wall Display Main Features

Front maintain cabinet/ Convenient to assemble and disassemble

Use of Special heat dissipation structure make excellent heat dissipation.

Ultra-wide viewing angle give you the largest screen viewing area

Die-cast aluminum cabinet design light and easy to transport.

Intelligent monitoring module

Intelligent cabinet with intelligent monitoring (LED display) shows the working status, smart monitoring the signal and record the span life.

Perfect design of maintenance

RGB Share’s new generation rental series supports both front and rear maintenance (both module and power supply), saving time and space for customers.

Cabinet is multi-waterproof design

Protection grade IP65,mature signal transmission, safer and more reliable.

Protection design

To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.

You are probably very familiar with LED lightbulbs of various sorts in your home and office and if being eco-friendly is a major sticking point for you, an LED video wall may be what you need. They are energy efficient, compact, super lightweight and offer a great picture quality that can be viewed from any distance or angle without any colour or picture distortions. They also get the edge when a bezel-free display is desired and tend to be used on curved walls and by broadcast media for on-camera background displays thanks to colour and luminance qualities.

LED Video Wall Display Specification

Pixel Configuration	SMD1921
Pixel Pitch(mm)	4.81
Pixel Density(dot/m2)	43264
Module Pixel Matrix (W×H)	52×52
Module Size(mm)	250(W)×250(H)
Module Weight(kg)	0.6
Module Power Consumption Max.(W)	45
Module/Panel(W×H)	2×4
Panel Resolution(W×H)	104×208
Panel Size(mm)	500(W)×1000(H)
Panel Weight(kg)	15
Maitainence Mode	Rear Maitainence
Panel type	Die-case Aluminum
Brightness(nits)	≥3000(color temperature 6500k)
Color Temperature(K)	3200—9300
Viewing Angle(Hor/Vert°)	140/120
Power Consumption Max(W/m2)	800
Power Consumption Avg(W/m2)	200-300
Operating Power Source	AC90~264V,Frequency 47-63(Hz)
Frame Frequency(Hz)	50&60
Drive Mode	Constant Driving,1/13S
Gray Scale	65536
Refresh Rate(Hz)	3840
Gray Scale per Color Level	16bit
Working Temperature/Humidity(℃/RH)	-20 – 60 / 10%-85%RH
Storage Temperature/Humidity(℃/RH)	-20 – 60 / 10%-85%RH
