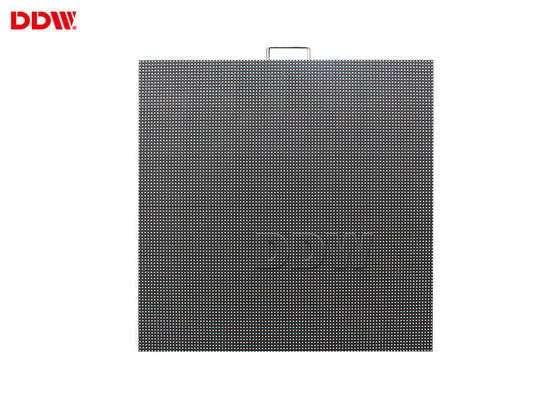

90V-240V Fixed LED Video Wall Display Easy Installation Energy Saving Noiseless
LED Video Wall Display Main Features
Independent Modularized Design
Innovative quick disconnected latch fo odule and control box can be installed /uninstalled within 5 seconds from front and back sides, instant replacing and easy maintaining.
Innovative module design
Sealed structure design, with high IP grade: IP67 for front and back, can be all weather protection Single integrated water-proof connector, reducing 90% failure less than traditional flat cable.

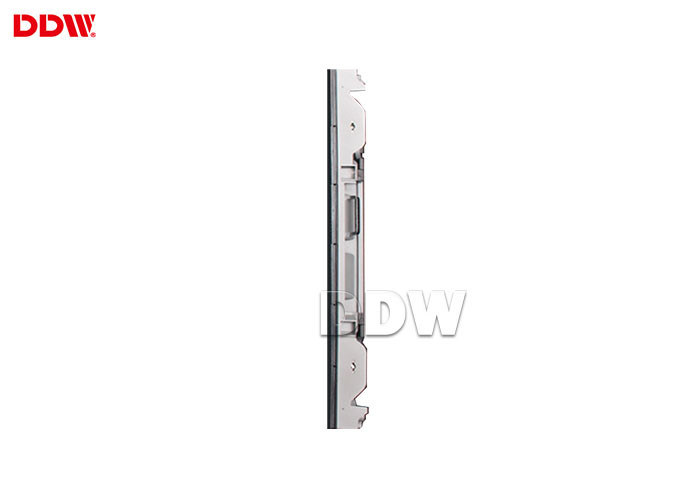

Smart Aluminum Profile design
Ultra light and thin, only with 28kg/sqm and 134mm thickness, saving transportation and labor costs
Concise Design for Easy installation
Mounted on the wall, only with simple square steel for fixing saving much cost and time for the installation.
Innovative Intelligent LED Display
Each module is integrated independent CPU, making LED display smart ultra low power consumption for energy saving 6500nits brightness, only with Max 180W/sqm, Aver 80w/sqm, saving more than 2/3 cost for the electricit.
Stable&Reliable Design, 5 Years Guarantee
Adopting high quality material with advanced technology design: lower temperature and consumption working status, and less cabling connection, etc.
Real Time Working status Feedback
Real time monitoring and feedback system, easily acquire working status for each module and power
supply, any failure will be warned immediately.
Intelligent Color and brightness Calibration
The CPU on each module records color and brightness calibration data with working time, the data will be synchronized with any replaced module to keep exactly same color and brightness for different batch modules.
LED Video Wall Specification
| Pixel Configuration |
SMD1921 |
| Pixel Pitch(mm) |
4.0 |
| Pixel Density(dot/m2) |
62500 |
| Module Pixel Matrix (W×H) |
64×32 |
| Module Size(mm) |
256(W)×128(H) |
| Module Weight(kg) |
0.5 |
| Module Power Consumption Max.(W) |
25 |
| Module/Panel(W×H) |
4×6 |
| Panel Resolution(W×H) |
256×192 |
| Panel Size(mm) |
1024(W)×768(H)×160(D) |
| Panel Weight(kg) |
28 |
| Maitainence Mode |
Rear Maitainence |
| Panel type |
Steel cabinet |
| Brightness(nits) |
≥4000 |
| Color Temperature(K) |
3200—9300 |
| Viewing Angle(Hor/Vert°) |
140/120 |
| Power Consumption Max(W/m2) |
1000 |
| Power Consumption Avg(W/m2) |
200-300 |
| Operating Power Source |
AC90~264V,frequency 47-63(Hz) |
| Frame Frequency(Hz) |
50&60 |
| Drice Mode |
Constant Driving,1/8 Scan |
| Gray Scale |
65536 |
| Refresh Rate(Hz) |
≥1920 |
| Gray Scale per Color Level |
16bit |
| Working Temperature/Humidity(℃/RH) |
-20 – 60 / 10%-85%RH |
| Storage Temperature/Humidity(℃/RH) |
-20 – 60 / 10%-85%RH |
