Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC |
Model Number: | DDW-LEDP8 |
Minimum Order Quantity: | 2pcs |
Price: | Negotiable |
Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
Delivery Time: | 3 working days upon payment |
Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
Supply Ability: | 3 , 000pcs per month |
Product Name: | LED Video Wall Display | Feature: | Energy Saving |
---|---|---|---|
Pixel Configuration: | SMD3535 | Panel Weight: | 28Kg |
Panel Type: | Steel Cabinet | Gray Scale: | 65536 |
Refresh Rate: | ≥920Hz | Brightness: | ≥5500nits |
High Light: | seamless video wall displays,seamless led video wall |

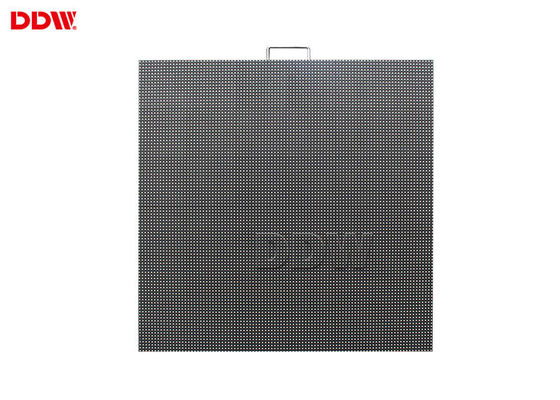

Fixed LED Video Wall Display Low Power Consumption With Wide Viewing Angle
Super wide angle
Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.
Dual channel heat dissipation
Low power consumption and fast heat dissipation/ energy saving and environment protection.

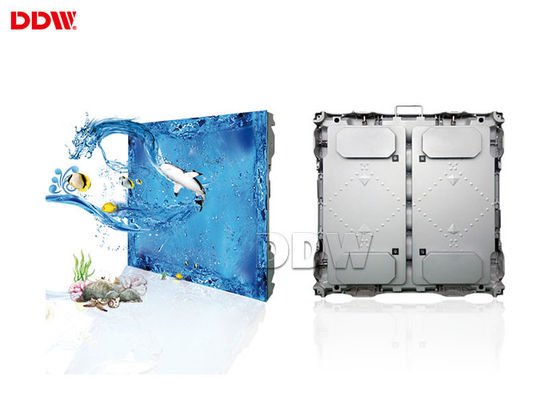

IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.
Ultra-light---lighter 40% than aluminum die-csting cabinet.
High precision---seamless splicing though CNC machining.

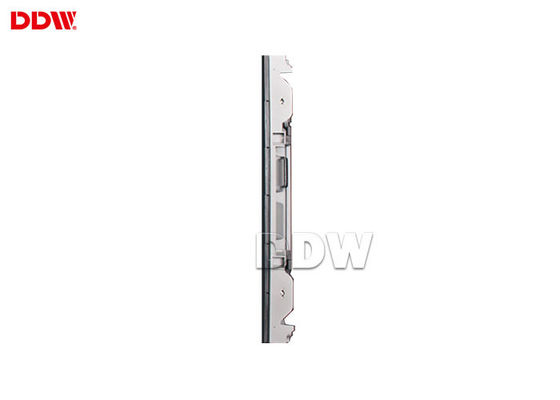

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%.
Easy installation---installed by quick lock for 20s only.

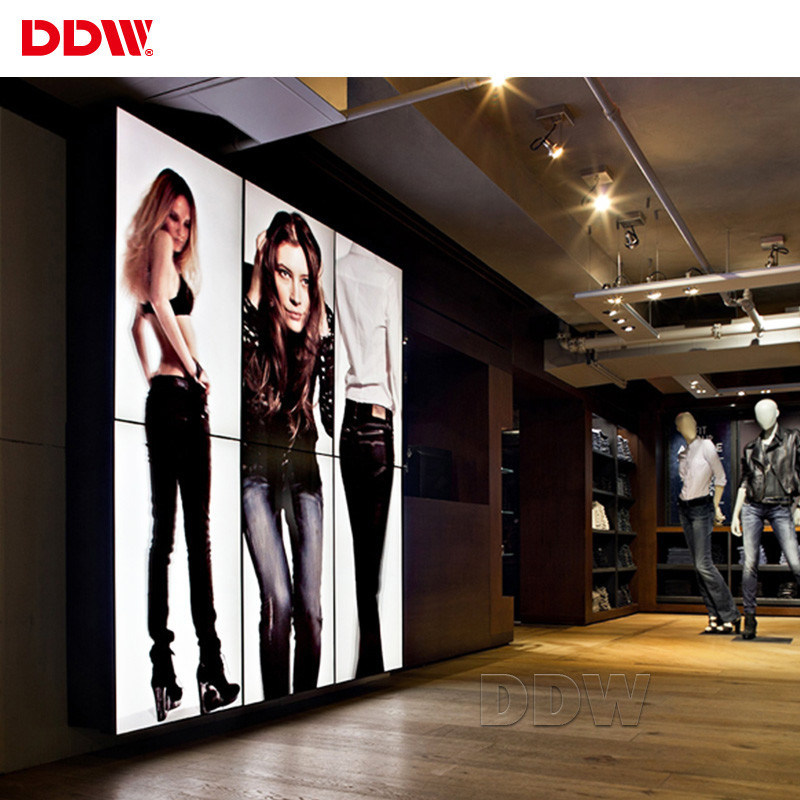

LED Video Wall Introduction
LED video wall is any large electronic display of an image or images being displayed in a presentation format. Typically multiple display devices are tiled together as close as possible in a matrix to create a single logical screen (The Video Wall). Then with special Video Processor devices, an image is scaled across the logical screen or multiple images are spread out over the logical screen or a combination of both in the case of picture in picture. This is all without respect for the individual display devices physical boundaries.
LED Video Wall Display Introduction
Pixel Configuration | SMD3535 |
Pixel Pitch(mm) | 8.0 |
Pixel Density(dot/m2) | 15625 |
Module Pixel Matrix (W×H) | 32×16 |
Module Size(mm) | 256(W)×128(H) |
Module Weight(kg) | 0.5 |
Module Power Consumption Max.(W) | 25 |
Module/Panel(W×H) | 4x6 |
Panel Resolution(W×H) | 128×96 |
Panel Size(mm) | 1024(W)×768(H)×160(D) |
Panel Weight(kg) | 28 |
Maitainence Mode | Rear Maitainence |
Panel type | Steel cabinet |
Brightness(nits) | ≥5500 |
Color Temperature(K) | 3200—9300 |
Viewing Angle(Hor/Vert°) | 140/120 |
Power Consumption Max(W/m2) | 1000 |
Power Consumption Avg(W/m2) | 200-300 |
Operating Power Source | AC90~264V,Frequency 47-63(Hz) |
Frame Frequency(Hz) | 50&60 |
Drice Mode | Constant Driving,1/4S |
Gray Scale | 65536 |
Refresh Rate(Hz) | ≥920 |
Gray Scale per Color Level | 16bit |
Working Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
Storage Temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH |
