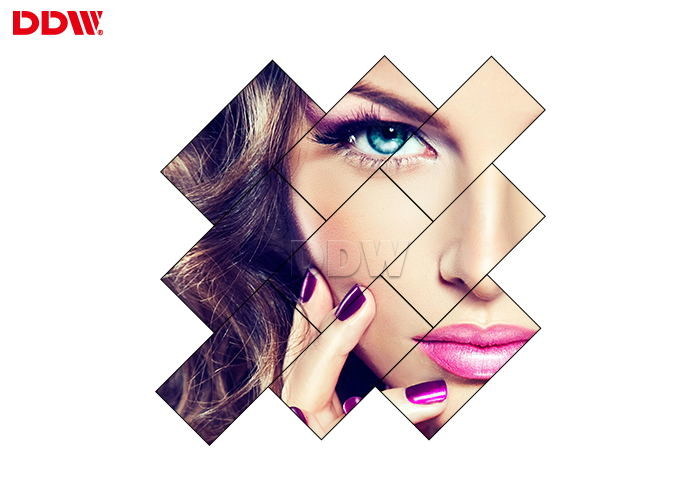

Original Samsung DID LCD Irregular Video Wall With Processor / Controller

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Quality carton with full wood box packing
Delivery Time: 3 working days upon payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3 , 000pcs per month
Detail Information
Name: Irregular Video Wall Type: TFT
Application: Indoor, Semi-outdoor Viewing Angle: 178°/178°
Contrast Ratio: 4000:1 Brightness: 350-700 Nits
Response Time: 6ms Input Voltage: 220V
High Light:

mosaic video wall

,

artistic video wall


Product Description

Original Samsung DID LCD Irregular Video Wall With Processor / Controller



Irregular Video Wall Quick Details



Place of Origin:Guangdong, China

Brand Name:DDW

Model Number:DDW-LW550HN16

Type:TFT

Application:Indoor, semi-outdoor

Viewing Angle:178°/178°

Contrast Ratio:4000:1

Brightness:350-700nits

Response Time:6ms

Input Voltage:220V

Warranty:1 Year, 1 Year

After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Usage:Indoor

Display Function:Video

Installation:wall mounted/ floor standing

Screen Dimension:1211.6x682.4x38.7mm

Operating system:Android Network /Standalone /PC version

Network:WIFI / LAN / 3G / 4G Optional

Total bezel width:1.7mm

HS Code:8528591090



Irregular Video Wall Parameters:



Name Original Samsung DID LCD Irregular Video Wall With Processor / Controller
Item No. Components Descriptions
1 55" Samsung 1.7mm bezel 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2 System controller 1 in 16output HDMI splitter
3 Bracket POP out bracket for 55" lcd video wall
4 Standard Accessories IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5 Packing 4/5 screens in 1 wooden case
Panel Specifications
LCD Technology Original Samsung DID LCD
Active Screen Diagonal 55"
Panel Dimension(WxH) 1211.6*682.4mm
Total Bezel Width 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System WLED
Luminance(nits) 500cd/m2
Contrast 1500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=260W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Working Time Capacity 7x24x365hours
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Net Weight 26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs
DVI-I DUAL LINK 1
HDMI input 2K 1
VGA input 1
RS232 IN 1
RS232 OUT 2
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English
Vertical/Horizontal Display Support



Packaging & Delivery



Selling Units:Single item

Single package size: 110X20X80 cm

Single gross weight:32.0 kg

Package Type:Quality carton with full wood box packing



Lead Time :



Quantity(Piece) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 To be negotiated
