Rich Color Splicing Irregular Video Wall Processor Auto Mapping Support

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550HN16
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Quality carton with full wood box packing
Delivery Time: 3 working days upon payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3 , 000pcs per month
Detail Information
Name: Irregular Video Wall Feature: Rich Color
Viewing Angle: 178°/178° Contrast Ratio: 4000:1
Color: 16.7M Color Fan: Quiet Cooling Fan
High Light:

mosaic video wall

,

artistic video wall


Product Description

Rich Color Splicing Irregular Video Wall Processor Auto Mapping Support

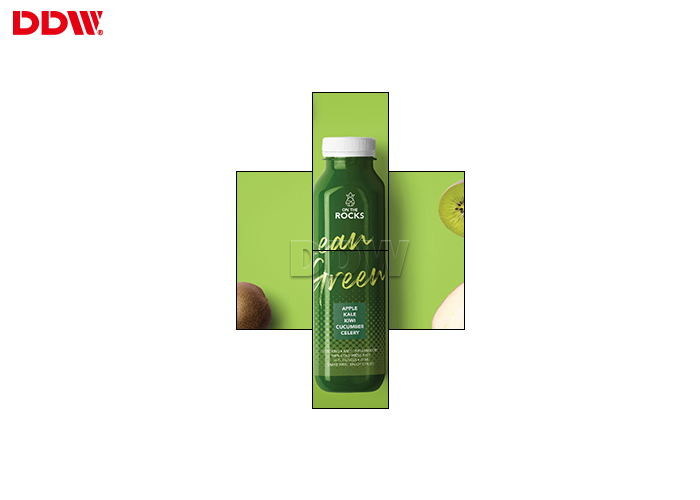

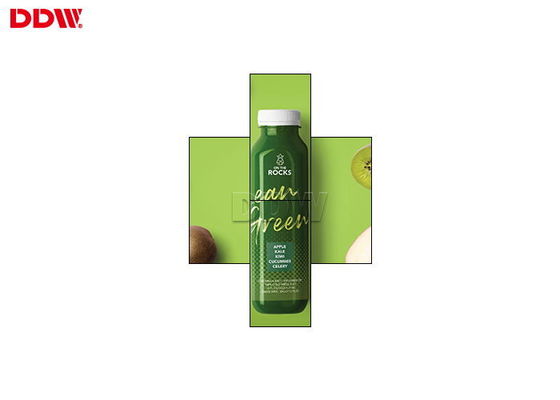

Irregular Video Wall Introduction



1. A single machine can be customized to multiple outputs, each output is intercepted according to the different arrangement of the liquid crystal screen to display corresponding parts to the corresponding liquid crystal unit to form a personalized shaped mosaic, that is, irregular splicing (the screen can be placed discretionarily, at any interval position, and the size of the screen can be inconsistent)
2. Support irregular splicing for both vertical or horizontal when using a vertical screen rotator
3. Adding an arbitrary angle rotator(in developing) to the front end of the LM-TV09S profiled splicer can achieve more irregular splicing (multi-angle rotation profile splicing), such as tilting 45 degree / 30 degree splicing
4. The device is equipped with 1 channel HDMI, 1 channel VGA, 1 channel VIDEO, and 1 channel USB signal input. Users can select the input signal source according to their needs
5.Truly in/out modular design--- truly concept modular, in/out boards
6.All-format signal capture--- including composite video, VGA, DVI, HDMI etc
7.Fully-digital processing channel inside --- Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.
8.individually supports 180° rotation
9.Easy maintenance--- suitable for all environment



Irregular Video Wall Parameters:



Name Rich Color Splicing Irregular Video Wall Processor Auto Mapping Support
Item No. Components Descriptions
1 55" Samsung 1.7mm bezel 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2 System controller 1 in 16output HDMI splitter
3 Bracket POP out bracket for 55" lcd video wall
4 Standard Accessories IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5 Packing 4/5 screens in 1 wooden case
Panel Specifications
LCD Technology Original Samsung DID LCD
Active Screen Diagonal 55"
Panel Dimension(WxH) 1211.6*682.4mm
Total Bezel Width 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System WLED
Luminance(nits) 500cd/m2
Contrast 1500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=260W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Working Time Capacity 7x24x365hours
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Net Weight 26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs



Packaging & Delivery



Selling Units:Single item

Single package size: 110X20X80 cm

Single gross weight:32.0 kg

Package Type:Quality carton with full wood box packing



Lead Time :



Quantity(Piece) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 To be negotiated
