| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Size: | 55 Inch |
|---|---|---|---|
| Application: | Exhibition Education Control Rooms | Viewing Angle: | 178°/178° |
| Bezel: | Narrow Bezel | Brightness: | 350-700 Nits |
| Color: | Rich Color | Input Voltage: | 220V |
| High Light: | mosaic video wall,artistic video wall |
||

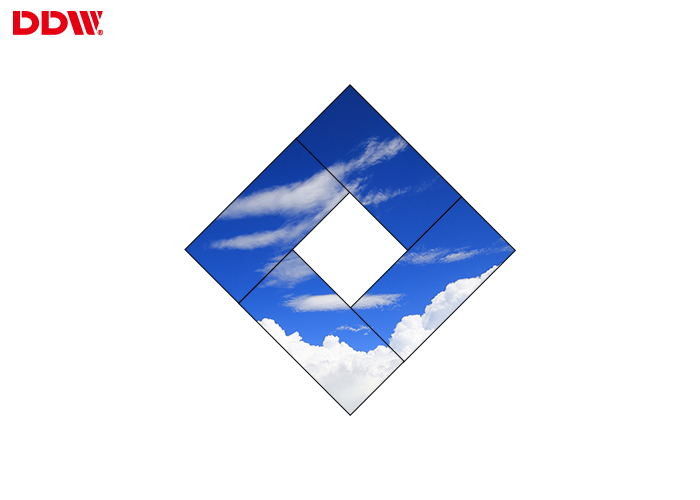

55 Inch LCD Irregular Video Wall For Exhibition Education Control Rooms
Irregular Video Wall Application
♦ Transportation Industry
LCD Irregular Video Wall could be used in the information display terminal of transportation industry, such as airports, ports, metro, highway. Because more information could be displayed integrated and timely in the LCD display.
♦ Financial Industry
LCD Irregular Video Wall could be used in the information display terminal of financial industry, such as stock and security market. These places are usually very spacial and there is crowded population. The wide viewing angle of LCD video wall makes people see the displaying information clearly and effortlessly from different directions and positions.
♦ Commercial Industry
LCD Irregular Video Wall could be used in the display terminal of commercial industry, such as advertising, media, product presentations etc. The LCD video wall could meet the high requirement for bright images and vivid videos because of its high definition and high brightness. At the same time, the LCD video wall could work around the clock for years without break, which makes it the best choice for commercial industry to display information with intermission.
Irregular Video Wall Parameters:
| Name | 55 Inch LCD Irregular Video Wall For Exhibition Education Control Rooms | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
