| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Architectural Video Wall | Color: | Full Color |
|---|---|---|---|
| Application: | Shopping Mall Advertising | Viewing Angle: | 178° |
| Contrast Ratio: | 4000:1 | Brightness: | 350-700 Nits |
| Response Time: | 6ms | Input Voltage: | 220V |
| High Light: | art video wall,artistic video wall |
||

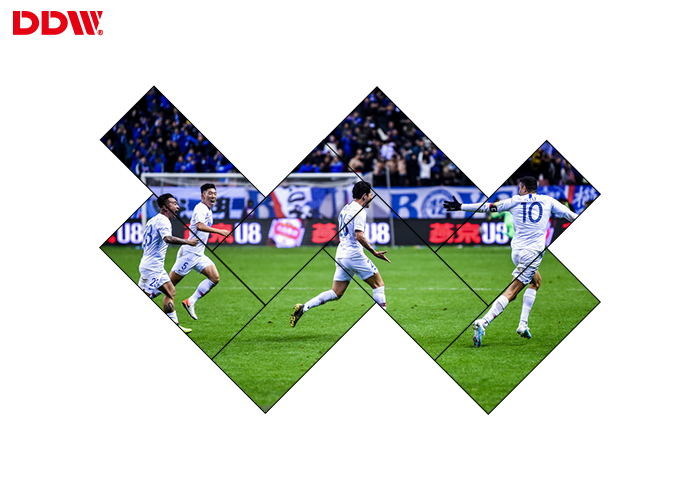

Full Color Architectural Video Wall , Irregular Led Display Shopping Mall Advertising
Architectural Video Wall Advantages
♦ Ultra Narrow Bezels: A thin-profile design and a screen-to-screen bezel width of as little as 1.7mm, 1.8mm ,3.5mm and 5.5mm bezel.
♦ Superior brightness : High contrast ratios and brightness of up to 7000 nits.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 178°.
♦ Long service life : more than 60000 hours life span.
♦ Active backlighting system : Active backlighting technology, which prompts the LED backlight to adjust automatically to content displayed on the screen.
♦ 24/7 reliable: 24/7/365 continuous operation.
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
Architectural Video Wall Parameters:
| Name | Full Color Architectural Video Wall , Irregular Led Display Shopping Mall Advertising | ||
| Item No. | Components | Descriptions | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Our Product:
1) Indoor digital signage systems; 2) Outdoor LCD digital totems; 3) UNB LCD video walls; 4) Hardware video wall controllers; 5) Stretched bar LCD displays; 6) Indoor Outdoor LED displays.
