| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | Mosaic Video Wall |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Feature: | Personalized |
|---|---|---|---|
| Other Name: | Super Narrow Bezel Video Wall | Viewing Angle: | 178°/178° |
| Contrast Ratio: | 4000:1 | Screen: | 4 Screen |
| Response Time: | 6ms | Input Voltage: | 220V |
| High Light: | mosaic video wall,art video wall |
||

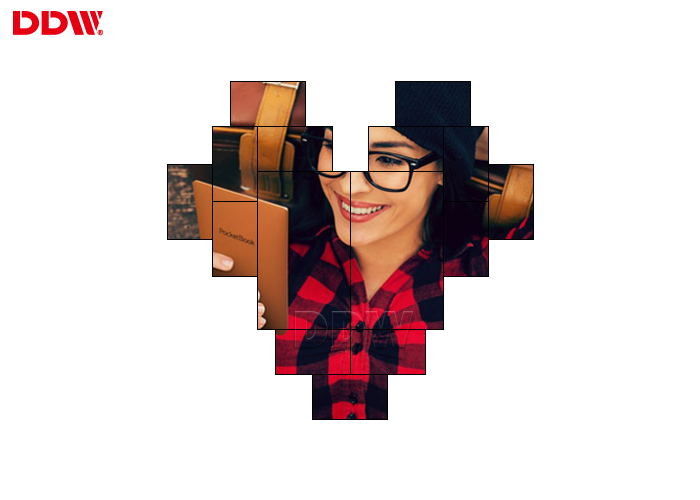

Personalized Mosaic Video Wall / DDW Super Narrow Bezel Video Wall
Mosaic Video Wall Characteristics:
1. Good visualization:
Glass based design allows the light to pass through the glass without any influence to the building structure around..
2. Ultra-thin, and ultra-light.
With only 8mm width and 12kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.
3. Frameless structure
Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.
4. Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5. Saving lighting costs of the whole building.
Besides good advertising effect, Asram LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6. Wide use range.
Wherever the glass wall is, Asram glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
Mosaic Video Wall Parameters:
| Name | High Resolution Irregular Video Wall / 4 Screen Artistic Video Wall | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| 4 | Standard Accessories | IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Mosaic Video Wall Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
Package Type:Quality carton with full wood box packing
