| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Quality carton with full wood box packing |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 , 000pcs per month |
| Name: | Irregular Video Wall | Output: | RJ45 / HDMI Output |
|---|---|---|---|
| Application: | Semi-outdoor | Other Name: | Art Video Wall Screen |
| Contrast Ratio: | 4000:1 | Brightness: | 350-700 Nits |
| Feature: | High Resolution | Input Voltage: | 220V |
| High Light: | art video wall,artistic video wall |
||

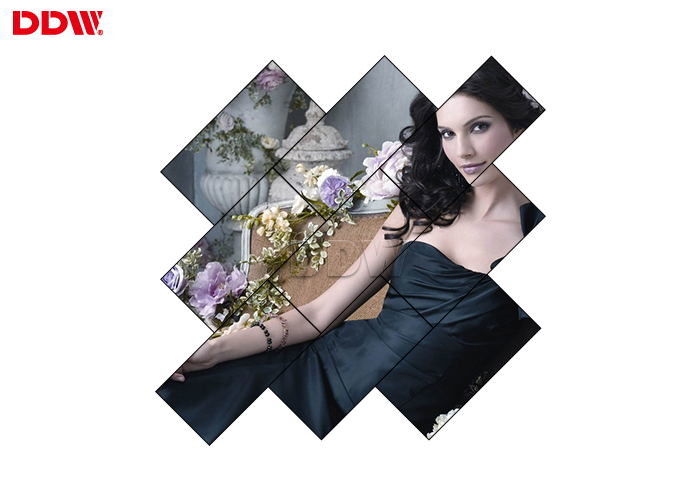

High Resolution Irregular Video Wall With Distribution Box RJ45 / HDMI Output
Irregular Video Wall Key Features
LED direct-lit backlight with uniform brightness and no boundary shadow.
Resolution: 1920 x 1080
High display resolution, and delicate image with rich color;
High definition, high brightness, high color gamut
DID LCD screen with 178° wide angle.
Large display area with light weight
Longer display lifespan
Multiple jointing methods, applicable for various scenes.
Stable running and low maintenance cost, support 24 hours continuous wokring.
Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.
Working humidity: 10% ~ 90%, able to work under harsh envionment.
Irregular Video Wall Parameters:
| Name | High Resolution Irregular Video Wall With Distribution Box RJ45 / HDMI Output | ||
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 1.7mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input | |
| 2 | System controller | 1 in 16output HDMI splitter | |
| 3 | Bracket | POP out bracket for 55" lcd video wall | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1211.6*682.4mm | ||
| Total Bezel Width | 1.7mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/m2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
| HDMI input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
Packaging & Delivery
Selling Units:Single item
Single package size: 110X20X80 cm
Single gross weight:32.0 kg
