Home ProductsLCD Video Wall

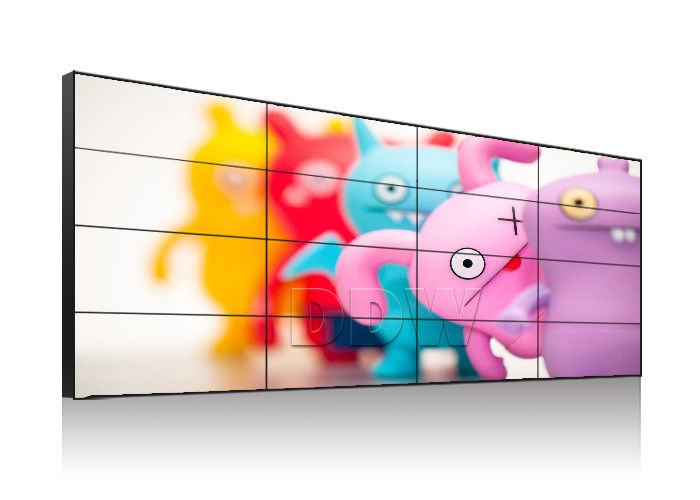

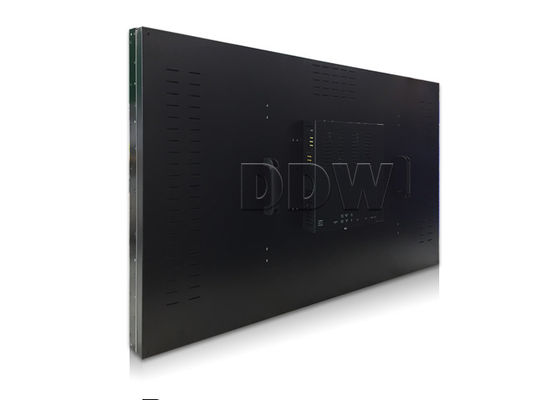

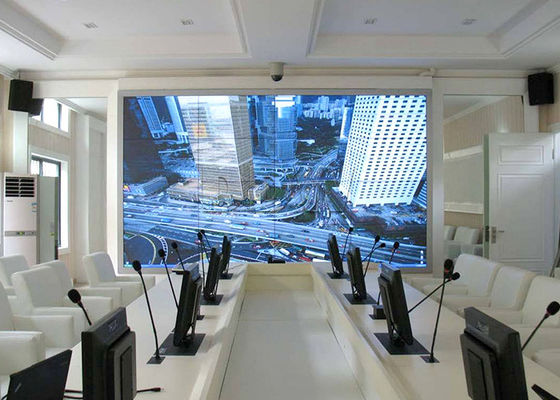

500nits bright sign LG video wall 4x4 multi display indoor led video wall solution 3.5mm

500nits bright sign LG video wall 4x4 multi display indoor led video wall solution 3.5mm

    • 500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm
    • 500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm
    • 500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm
    • 500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm
  • 500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW490DUN-THC1

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel Size: 49inch Resolution: 1920x1080
    Bezel Width: 3.5mm Color: 8Bit , 16M
    Brightness: 500nits Surface: Anti-glare
    Backlight: LED Control Method: RS232 Control
    High Light:

    video display walls

    ,

    narrow bezel video wall

    500nits bright sign LG video wall 4x4 multi display indoor led video wall solution 3.5mm



    500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm 0



    LG Video Wall Parameters

    1. Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
    2. 500its brightness, MEGA DCR contrast
    3. FHD 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
    4. Signal interface rich, RS232, , DVI, VGA, YPbPr, AV;
    5. FHD video wall unit, high brightness, high contrast, high gamut;
    6. Flexible structure design, easy installation, extensible, arbitrary combination;
    7. Stable performance, suitable working for a long time;

    LG Video Wall Features

    • Support a variety of signal ports;
    • Built-in splicing module, Support splice function;
    • Support Creating one window PIP across the screen, roaming service, scaling, PIP;
    • Support matrix joint control;
    • Unique DNX motion supplement image processing technology;
    • Dynamic image without motion trail;
    • Splicing image processing RS-232 RJ45 loop-circuit input/output;
    • Input by remote control with wire, mobile receiver head;

    Specifications

    Model No: DDW-LW490DUN-THC1
    LCD Technology LG a-Si TFT-LCD
    Active Screen Diagonal 49"
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System WLED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH) 0.5593x0.5593mm
    Active Display Area(WxH) 1073.8 × 604 mm
    Panel Dimension(WxHxD) 1077.6x607.8x55.6mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing
    1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 1
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizontal &vertical numbers of screens and show display
    Support combine all screens together to show 1image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
    Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

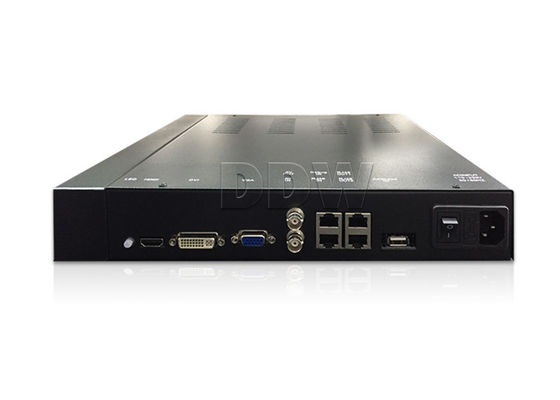

    Various video wall control board options

    500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm 1

    500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm 2500nits bright sign LG video wall 4x4  multi display indoor led video wall solution 3.5mm 3
