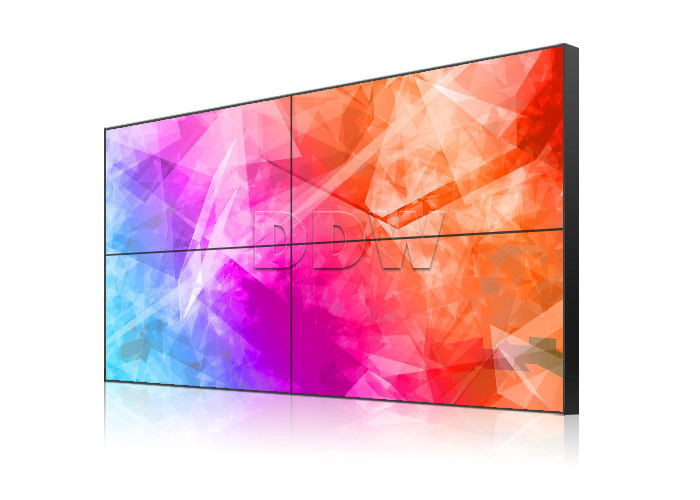

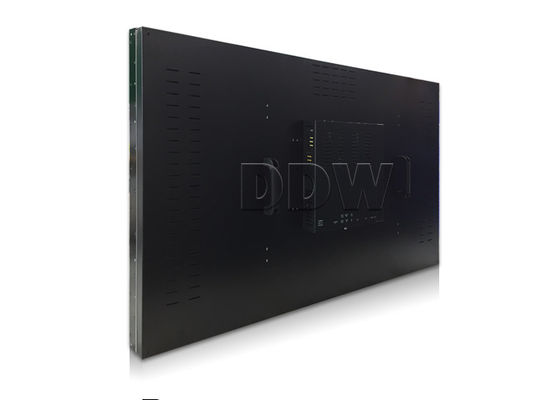

Digital signage video wall screens 16.7M color , large screen lcd tv wall DDW-LW550DUN-THB5

Name: Digital signage video wall screens 16.7M color , large screen lcd tv wall DDW-LW550DUN-THB5
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-LW550DUN-THB5
Availability: InStock

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550DUN-THB5

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                hd video wall, narrow bezel video wall


Panel Size:	55inch	Resolution:	1920x1080
Bezel Width:	1.8mm	Contrast Ratio:	MEGA DCR
Brightness:	500nits	Response Time:	5ms
Backlight:	LED	Viewing Angle:	178x178

Panel Size:	55inch
Resolution:	1920x1080
Bezel Width:	1.8mm
Contrast Ratio:	MEGA DCR
Brightness:	500nits
Response Time:	5ms
Backlight:	LED
Viewing Angle:	178x178

Product Description

DDW-LW550DUN-THB5 55 inch lg video wall 1080p FHD 500nits high resolution 1.8mm bezel lcd tv wall

Parameters

Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
500its brightness , MEGA DCR contrast
FHD physical resolution 1920x1080
Only 1.8mm Ultra narrow bezel , high quality , practical , good vision effect
Signal interface rich , RS232 , , DVI , VGA , Y Pb Pr , AV
FHD video wall unit , high brightness , high contrast , high gamut
Flexible structure design , easy installation , extensible , arbitrary combination
Stable performance , suitable working for a long time

Key features

Support a variety of signal ports
Built-in splicing module , Support splice function
Support Creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head

Digital signage video wall screens 16.7M color , large screen lcd tv wall DDW-LW550DUN-THB5 0

Specifications

Model No.	DDW-LW550DUN-THB5
LCD Technology	LG a-Si TFT-LCD
Active Screen Diagonal	55"
Total Bezel Width	1.8mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	WLED
Luminance(nits)	500cd/sqm
Contrast	4000:1
Viewing Angle	H 178°/V 178°
Pixel Pitch(WxH)	0.63×0.mm
Active Display Area(WxH)	1209.6 × 680.4 mm
Panel Dimension(WxHxD)	1211.4x682.2x53.3mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	≧250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	1
ISP IN	1
IR IN	1
CODING BUTTON	1
AC IN	AC100-240V
Color System Support	PAL/NTSC/SECAM
Control Type	IR Remote &Software Control
Menu Language	English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display	Support
Combine Display	Support combine any horizontal &vertical numbers of screens and show display
Combine Display	Support combine all screens together to show 1image
Solid Display	Support each screen input with separate signal
PIP/Zoom/Roaming	Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces	Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolution inputs

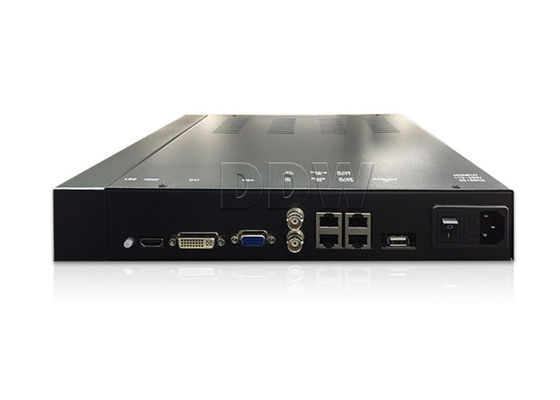

Various video wall control board options

Digital signage video wall screens 16.7M color , large screen lcd tv wall DDW-LW550DUN-THB5 2

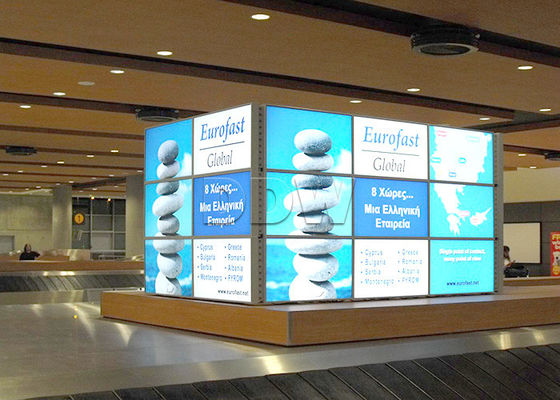

LG video wall can be used in below fields:conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
