Home > products > LCD Video Wall > 49 inch 1.8mm LCD video wall 2x2 super narrow bezel display for exhibition advertising DDW-LW490DUN-TJB1

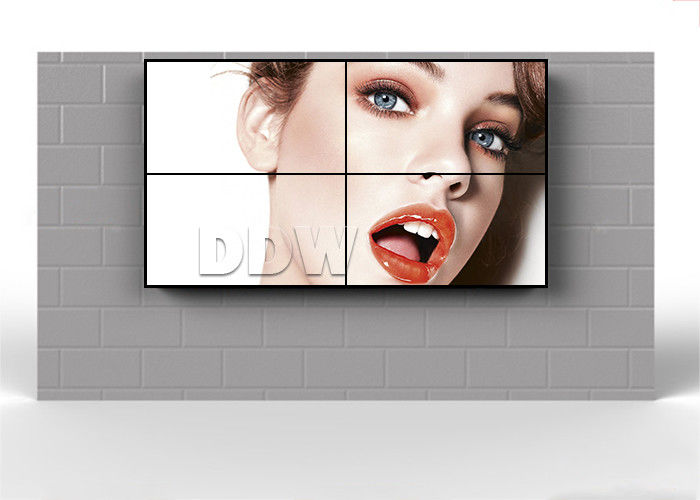

49 inch 1.8mm LCD video wall 2x2 super narrow bezel display for exhibition advertising DDW-LW490DUN-TJB1

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW490DUN-TJB1

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price
Product Details
Highlight:

hd video wall

,

narrow bezel video wall

Panel Size:
49 Inch
Resolution:
1920x1080
Bezel Width:
1.8mm
Color:
8Bit , 16M
Brightness:
500nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Working Time Capacity:
7x24hours
Pixel Pitch:
0.5593x0.5593mm
Application Condition:
Indoor And Semi-outdoor
Panel Size:
49 Inch
Resolution:
1920x1080
Bezel Width:
1.8mm
Color:
8Bit , 16M
Brightness:
500nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Working Time Capacity:
7x24hours
Pixel Pitch:
0.5593x0.5593mm
Application Condition:
Indoor And Semi-outdoor
Product Description

49 inch 1.8mm LCD video wall 2x2 super narrow bezel display for exhibition advertising DDW-LW490DUN-TJB1



Applications:

Advertising video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



49" LG advertising video wall main parameters

  1. Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD;
  2. 500nits brightness, MEGA DCR contrast;
  3. FHD physical resolution 1920x1080;
  4. Only 1.8mm Ultra narrow bezel, high quality ,Practical, good vision effect;
  5. Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
  6. HD video wall unit--- High brightness, high contrast, High gamut;
  7. Flexible structure design ---easy installation, extensible, arbitrary combination;
  8. Stable performance, suitable working for a long time;

Key features:

  • Support a variety of signal ports;
  • Built-in splicing module , Support splice function;
  • Support Creating one window PIP across the screen, roaming service, scaling, PIP
  • Support matrix joint control;
  • Unique DNX motion supplement image processing technology;
  • Dynamic image without motion trail;
  • Splicing image processing RS-232 RJ45 loop-circuit input/output;
  • Input by remote control with wire, mobile receiver head;





Specifications:

LCD Technology LG IPS LCD
Active Screen Diagonal 49"
Bezel Width Total: 1.8mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.5593x0.5593mm
Active Display Area(WxH) 1073.8 × 604 mm
Panel Dimension(WxHxD) 1075.38x605.8x53.6mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
