Seamless lcd wall remote control with wire multi display wall RJ45 loop - circuit input output DDW-LW5505

Name: Seamless lcd wall remote control with wire multi display wall RJ45 loop - circuit input output DDW-LW5505
Brand: DDW
SKU: DDW-DV550FHM-NV3
Rating: 4.7 (113 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-DV550FHM-NV3

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                video display walls, narrow bezel video wall


Product Name:	Ultra Thin Bezel LCD Video Wall	Orientation:	Portrait & Landscape
Bezel Width:	3.5 Mm	ISM Method:	Normal , Color Wash
Handle:	Yes	Panel Technology:	IPS
Aspect Ratio:	16 : 9	Natural Mode:	Yes
Temperature Sensor:	Yes	Weight:	23kg
Application Condition:	Retail Shopping Mall

Product Name:	Ultra Thin Bezel LCD Video Wall
Orientation:	Portrait & Landscape
Bezel Width:	3.5 Mm
ISM Method:	Normal , Color Wash
Handle:	Yes
Panel Technology:	IPS
Aspect Ratio:	16 : 9
Natural Mode:	Yes
Temperature Sensor:	Yes
Weight:	23kg
Application Condition:	Retail Shopping Mall

Product Description

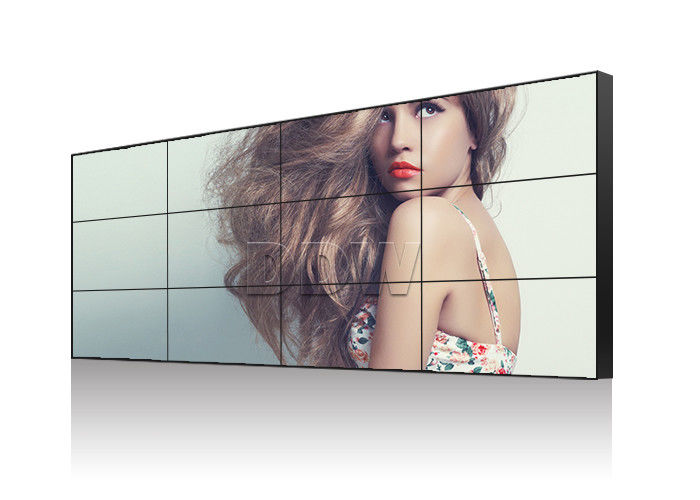

55 inch 3.5 mm 700nits ultra thin bezel LCD video wall for fashion store advertising DDW-DV550FHM-NV3

Seamless lcd wall remote control with wire multi display wall RJ45 loop - circuit input output DDW-LW5505 0

Key features

Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window PIP across the screen, roaming service, scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output.
Input by remote control with wire, mobile receiver head.

55 " LCD video wall main parameters

Original Samsung commercial grade lcd video wall display panel,16:9 Samsung a-Si TFT-LCD
700 nits brightness,MEGA DCR contrast
FHD physical resolution 1920x1080
Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, ,DVI,VGA,Y Pb Pr ,AV
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time

LCD video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Specifications

Model No;	DDW-DV550FHM-NV3
LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	55"
Pixel Pitch(WxH)	0.630x0.630mm
Active Display Area(WxH)	1209.6x680.4mm
Panel Dimension(WxHxD)	1213.5x684.3x60.39mm
Total Bezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	WLED
Luminance(nits)	700cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing
DVI-I DUAL LINK	1
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	1
ISP IN	1
IR IN	1
CODING BUTTON	1

Various video wall control board options

Seamless lcd wall remote control with wire multi display wall RJ45 loop - circuit input output DDW-LW5505 1

Seamless lcd wall remote control with wire multi display wall RJ45 loop - circuit input output DDW-LW5505 2
