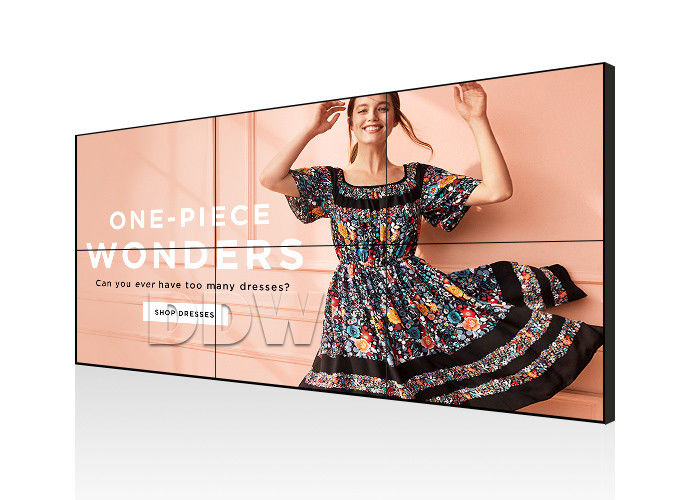

46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall

46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall

    • 46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall
    • 46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall
    • 46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall
    • 46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall
  • 46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-DV46FHM-NV0

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: L/C , L/C , T/T
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 4k Video Wall Resolution: 3840x2160
    Panel Brand: Innolux Bezel Width: 3.5mm
    Working Time Capacity: 7x24hours Input Voltage: AC 220v-250v
    Application Condition: Indoor And Semi-outdoor Viewing Angle: 178x178

    46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall



    46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall



    Quick Detail

    • RS232 control method
    • RJ45 loop Daisy chain video wall
    • Support DVI HDMI VGA AV YPBPR signals
    • Suitable working for 7x24hours



    Applications

    This 46 inch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used forConference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

    Key features

    1. Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD

    2. 500nits brightness , 4000:1 contrast

    3. 4K UHD physical resolution 3840x2160

    4. Only 20mm Ultra narrow bezel , high quality , practical , good vision effect

    5. UHD video wall unit , high brightness, high contrast, high gamut

    6. Flexible structure design , easy installation , extensible , arbitrary combinatio



    Specifications

    Model No. DDW-DV46FHM-NV0
    LCD Technology LG IPS
    Active Screen Diagonal 46"
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System WLED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH) 0.53025×0.53025 mm
    Active Display Area(WxH) 1018.08×572.67 mm
    Panel Dimension(WxHxD) 1213.5x684.3x59mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing
    HDMI 1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 1
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizontal &vertical numbers of screens and show display
      Support combine all screens together to show 1image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
    Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs



    Various video wall control board options
    46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall

    46 inch 3840x2160 high resolution 3.5mm seamless INNOLUX 4K video wall
