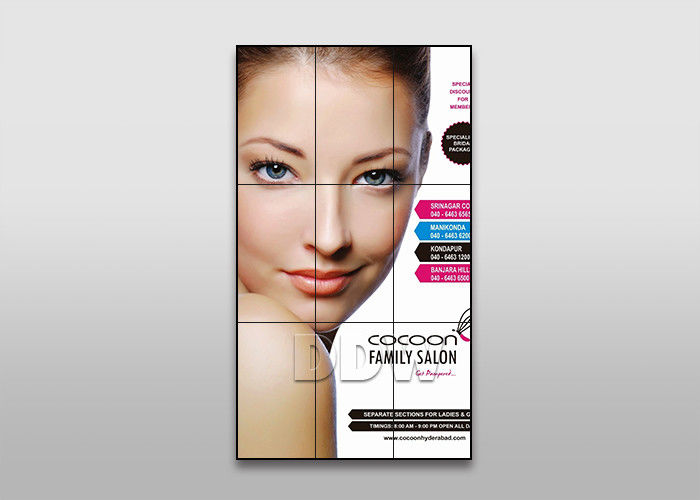

46 Inch commercial lcd display 4k video wall 500nits brightness 4000 : 1 contrast

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW460HN11
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Detail Information
Signal Support: DVI//VGA Resolution: 3840x2160
Viewing Angle: 178x178 Brightness: 500nits
Working Time Capacity: 7x24hours Input Voltage: AC 220v-250v
Power Consumption: 230W
High Light:

video display walls

,

hd video wall


Product Description

46 Inch commercial lcd display 4k video wall 500nits brightness 4000 : 1 contrast

Key features

  • Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD
  • 500nits brightness , 4000:1 contrast
  • 4K UHD physical resolution 3840x2160
  • Only 3.5mm narrow bezel , high quality , practical , good vision effect
  • UHD video wall unit , high brightness, high contrast, high gamut
  • Flexible structure design , easy installation , extensible , arbitrary combination



Quick Detail

  • RS232 control method
  • RJ45 loop Daisy chain video wall
  • Support DVI VGA AV YPBPR signals
  • Suitable working for 7x24hours



Applications

This 46nch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used for Conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.



Specifications

Model No: DDW-LW460HN11
LCD Technology Samsung DID
Active Screen Diagonal 46"
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 3840x2160
Backight System WLED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.5302x0.5302mm
Active Display Area(WxH) 1018.08×572.67mm
Panel Dimension(WxHxD) 1021.98x576.57x72.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
  Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs



Various video wall control board options
46 Inch commercial lcd display 4k video wall  500nits brightness 4000 : 1 contrast 0

46 Inch commercial lcd display 4k video wall  500nits brightness 4000 : 1 contrast 1
