Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-TKB1
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Signal Support: |
DVI//VGA |
Resolution: |
3840x2160 |
Viewing Angle: |
178x178 |
Brightness: |
500nits |
Working Time Capacity: |
7x24hours |
Input Voltage: |
AC 220v-250v |
Power Consumption: |
230W |
Signal Support: |
DVI//VGA |
Resolution: |
3840x2160 |
Viewing Angle: |
178x178 |
Brightness: |
500nits |
Working Time Capacity: |
7x24hours |
Input Voltage: |
AC 220v-250v |
Power Consumption: |
230W |

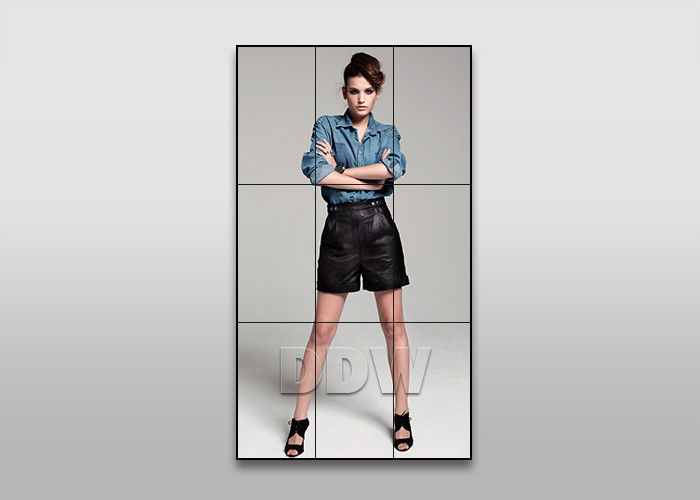

3840 x 2160 high resolution 3x3 video wall 4k lcd monitor AV YPBPR signals
Key features
1. Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD
2. 500nits brightness , 4000:1 contrast
3. 4K UHD physical resolution 3840x2160
4. Only 3.5mm narrow bezel , high quality , practical , good vision effect
5. UHD video wall unit , high brightness, high contrast, high gamut
6. Flexible structure design , easy installation , extensible , arbitrary combination
Quick Detail
Applications
This 55inch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used for Conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Specifications
Model No: | DDW-LW550DUN-TKB |
LCD Technology | INNOLUX a-Si TFT-LCD |
Active Screen Diagonal | 55" |
TotalBezel Width | 3.5mm |
Aspect Ratio | 16:9 |
Physical Resolution | 3840x2160 |
Backight System | WLED |
Luminance(nits) | 500cd/sqm |
Contrast | MEGA DCR |
Viewing Angle | H 178°|V 178° |
Pixel Pitch(WxH) | 0.63×0.63mm |
Active Display Area(WxH) | 1209.6×680.4 mm |
Panel Dimension(WxHxD) | 1213.4x684.2x38.9mm |
White Point | 10,000 K |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000 h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | lower than 250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 0.85 |
Storage Temperature | -20-60°C | -4-140°F |
Storage Humidity | 85% non-condensing |
1 | |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 1 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
Vertical/Horizontal Display | Support |
Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
Support combine all screens together to show 1image | |
Solid Display | Support each screen input with separate signal |
PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Various video wall control board options
