| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | L/C , L/C , T/T |
| Supply Ability: | 3 , 000pcs per month |
| Signal Support: | DVI//VGA DP Loop | Resolution: | 3840x2160 |
|---|---|---|---|
| Viewing Angle: | 178x178 | Brightness: | 500nits |
| Working Time Capacity: | 7x24hours | Input Voltage: | AC 220v-250v |
| Power Consumption: | 230W | ||
| High Light: | video display walls,narrow bezel video wall |
||

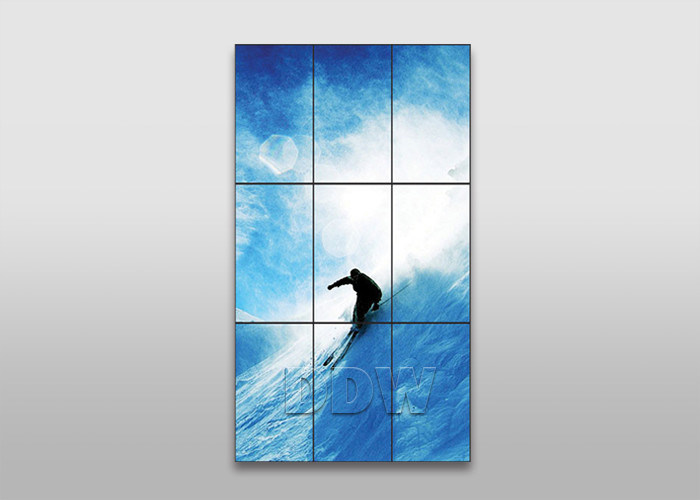

55 inch Samsung 1.7mm 500nits 4K LCD video wall ultra narrow bezel LCD video wall display for chain store
Key features
1. Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD
2. 500nits brightness , 4000:1 contrast
3. 4K UHD physical resolution 3840x2160
4. Only 1.7mm narrow bezel , high quality , practical , good vision effect
5. UHD video wall unit , high brightness, high contrast, high gamut
6. Flexible structure design , easy installation , extensible , arbitrary combination
Specifications
| Model No: | DDW-LW550HN16 |
| LCD Technology | INNOLUX a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Total Bezel Width | 1.7mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 3840x2160 |
| Backight System | WLED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.63x0.63 mm |
| Active Display Area(WxH) | 1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) | 1211.54x682.34x68.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| input | 2 |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| DP loop | 1xDP in, 1xDP out |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Various video wall control board options
Quick Detail
Applications
This 55inch 1.7mm narrow bezel video wall is the best cost-effective model , which can be widely used for CCTV control room Conference and meeting rooms , GYM center , Lobbies , Security Monitoring Center , Surveillance and Retail Center , Restaurant and hotel , Retail Shopping Mall Advertising and information Displays , Public Installations , Exhibition and show center , Live show , Rental and advertising Center , Museums , Church , Transportation and Mass Info Display systems.
