RS232 control outdoor video wall lcd monitors 3.5mm ultra narrow bezel IPS panel

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN12

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price
Product Details
Highlight:

video display walls

,

narrow bezel video wall

Screen Size:
55"
Panel Technology:
IPS
Bezel Width:
3.5mm
Brightness:
700 Nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Native Resolution:
1920 X 1080 ( FHD )
Viewing Angle:
178 X 178
Application Condition:
Conference And Meeting Rooms
Screen Size:
55"
Panel Technology:
IPS
Bezel Width:
3.5mm
Brightness:
700 Nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Native Resolution:
1920 X 1080 ( FHD )
Viewing Angle:
178 X 178
Application Condition:
Conference And Meeting Rooms
Product Description

RS232 control outdoor video wall lcd monitors 3.5mm ultra narrow bezel IPS panel





LCD digital wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



Key features:

  1. Support a variety of signal ports.
  2. Built-in splicing module, Support splice function
  3. Support Creating one window PIP across the screen, roaming service, scaling,PIP
  4. Support matrix joint control.
  5. Unique DNX motion supplement image processing technology,
  6. Dynamic image without motion trail
  7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
  8. Input by remote control with wire, mobile receiver head.



55 " LCD digital wall main parameters

1, Original SHARP commercial grade lcd video wall, 16:9 SHARP a-Si TFT-LCD;

2, 700nits brightness, MEGA DCR contrast;

3, FHD physical resolution 1920x1080;

4, Only 3.5mm ultra narrow bezel , high quality , practical , good vision effect;

5, Signal interface rich, RS232, , DVI, VGA, YPbPr, AV;

6, HD video wall unit , high brightness , high contrast , high gamut;

7, Flexible structure design, easy installation, extensible, arbitrary combination;

8, Stable performance, suitable working for a long time





Specifications

Model No: DDW-LW550HN12
LCD Technology Samsung a-Si TFT-LCD
Active Screen Diagonal 55"
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1213.5x684.3x67.7mm
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backlight System WLED
Luminance(nits) 700cd/sqm
Contrast 5000:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
DVI-I DUAL LINK 1
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1

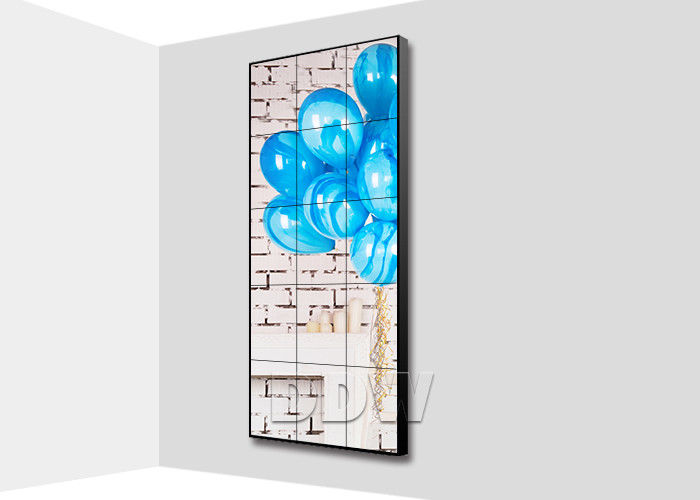

RS232 control outdoor video wall lcd monitors 3.5mm ultra narrow bezel IPS panel 0

Applications:

Advertising video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
